B. Jupyter Notebook Tutorials#

B.1. Fishery Dynamics Tutorial#

Note

Run the tutorial interactively: Fishery Dynamics Notebook.
Please be aware that notebooks can take a couple minutes to launch.
To run the notebooks yourself, download the files here and use these requirements.

B.1.1. Tutorial: Sensitivity Analysis (SA) to discover factors shaping consequential dynamics#

This notebook demonstrates the application of sensitivity analysis to discover factors that shape the behavior modes of a socio-ecological system with dynamic human action.

The system of differential equations below represent a system of prey (defined in the equation below as x) and predator (defined as y) fish, with a human actor harvesting the prey fish. You can read more about this system at Hadjimichael et al. (2020).

_images/eqn2.png

The table below defines the parameters in the system and also denotes the baseline and ranges associated with each uncertain parameter.

_images/table1.png

The system is simple but very rich in the dynamic behaviors it exhibits. This complexity is accompanied by the presence of several equilibria that come in and out of existence with different parameter values. The equilibria also change in their stability according to different parameter values, giving rise to different behavior modes as shown by the diverse predator and prey abundace trajectories in the figure below.

_images/Figure_1.png

In the unharvested system (without the human actor) the stability of several of these equilibria can be derived analytically. The task becomes significantly more difficult when the adaptive human actor is introduced, deciding to harvest the system at different rates according to their objectives and preferences.

Sensitivity analysis methods can help us identify the factors that most control these dynamics by exploring the space of parameter values and seeing how system outputs change as a result.

Through previously conducted optimization, there already exists a set of potential harvesting strategies that were identified in pursuit of five objectives:

  • Maximize Harvesting Discounted Profits (Net Present Value)

  • Minimize Prey Population Deficit

  • Minimize Longest Duration of Consecutive Low Harvest

  • Maximize Worst Harvest Instance

  • Minimize Harvest Variance

The identified harvesting strategies also meet the necessary constraint of not causing inadvertent predator collapse.

We will be examining the effects of parametric uncertainty on these identified strategies, particularly focusing on two strategies: one selected to maximize harvesting profits and one identified through previous analysis to perform ‘well enough’ for all objectives across a wide range of states of the world (referred to as the ‘robust’ harvesting policy).

B.1.1.1. Let’s get started!#

In this tutorial, we will be loading in data that has been produced in Hadjimichael et al. (2020). Before we start our analysis, we’ll load the relevant Python libraries. NOTE: To step through the notebook, execute each gray (code) box by typing “Shift+Enter”.

#Import necessary libraries

import msdbook
import numpy as np
import matplotlib.pyplot as plt
from SALib.sample import saltelli
from SALib.analyze import sobol
from matplotlib import patheffects as pe

# load example data
msdbook.install_package_data()

%matplotlib inline
%config InlineBackend.print_figure_kwargs = {'bbox_inches':None}
Downloading example data for msdbook version 0.1.5...
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/uncertain_params_bounds.txt
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_metric_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_vary_delta.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_mth_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/solutions.resultfile
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/3704614_heatmap.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/LHsamples_original_1000.txt
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/3704614_pseudo_r_scores.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/param_values.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_yr_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_mth_delta.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7000550_pseudo_r_scores.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/collapse_days.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/hymod_params_256samples.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_vary_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7000550_heatmap.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7200799_heatmap.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_yr_delta.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7200799_pseudo_r_scores.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/LeafCatch.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/hymod_simulations_256samples.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/Robustness.txt

B.1.1.2. Step 1: Load identified solutions and explore performance#

Here we load in the solution set obtained in Hadjimichael et al. (2020). The solution set contains the decision variables and objectives associated with a variety of harvesting policies. For this tutorial, we focus on comparing two policies: harvesting profits and one that performs robustly across all objectives. Below, we are reading in the decision variables and objectives from an external file that can be found within the msdbook package data.

robustness = msdbook.load_robustness_data()
results = msdbook.load_profit_maximization_data()

robust_solution = np.argmax(robustness[:,-1]) #pick robust solution
profit_solution = np.argmin(results[:,6]) #pick profitable solution
objective_performance = -results[:,6:] #Retain objective values

# Get decision variables for each of the policies
highprofitpolicy = results[profit_solution,0:6]
mostrobustpolicy = results[robust_solution,0:6]

Next we plot the identified solutions with regards to their objective performance in a parallel axis plot

Tip

View the source code used to create this plot here: plot_objective_performance

ax, ax1 = msdbook.plot_objective_performance(objective_performance, profit_solution, robust_solution)
_images/fishery_output_6_0.png

The solution set from the optimization in Hadjimichael et al. (2020) are presented in a parallel axis plot where each of the five objectives (and one constraint) are represented as an axis. Each solution on the Pareto front is represented as a line where the color of the line indicates the value of the NPV objective. The preference for objective values is in the upward direction. Therefore, the ideal solution would be a line straight across the top of the plot that satisfies every objective. However, no such line exists because there are tradeoffs when sets of objectives are prioritized over the others. When lines cross in between axes, this indicates a tradeoff between objectives (as seen in the first two axes).The solution that is most robust in the NPV objective has the highest value on the first axis and is outlined in dark gold. The solution that is most robust across all objectives is outlined in a brighter yellow. A parallel axis is an effective visual to characterize high-dimensional tradeoffs in the system and visualize differences in performance across policies.

B.1.1.3. Step 2: Use SALib to generate a sample for a Sobol sensitivity analysis#

In Step 1, we showed how the optimized harvesting policies performed in the objective space, which utilized the baseline parameters outlined in the table above. Now, we are interested in understanding how sensitive our two policies are to alternative states of the world that may be characterized by different parameter values. To do so, we first need to define the problem dictionary that allows us to generate these alternative states of the world.

# Set up SALib problem
problem = {
  'num_vars': 9,
  'names': ['a', 'b', 'c', 'd', 'h', 'K', 'm', 'sigmaX', 'sigmaY'],
  'bounds': [[0.002, 2], [0.005, 1], [0.2, 1], [0.05, 0.2], [0.001, 1],
             [100, 5000], [0.1, 1.5], [0.001, 0.01], [0.001, 0.01]]
}

Then we use the following command to generate a Saltelli sample from these defined ranges:

param_values = saltelli.sample(problem, 1024, calc_second_order=False)

Generally, it is a good idea to save the result of the sample since it is often reused and regenerating it produces a different sample set. For this reason, we will load one from file that was previously generated.

# load previously generated Saltelli sample from our msdbook package data
param_values = msdbook.load_saltelli_param_values()

B.1.1.4. Step 3: Evaluate the system over all generated states of the world#

Now we re-evaluate how well the policies do in the new states of the world. In order to characterize failure of a policy, we identify the states where the predator population collapses, as an inadvertent consequence of applying the harvesting strategy under a state of the world different from the one originally assumed. Due to how long this step takes to execute within the tutorial, we will read in the solutions from an external file. However, the block of code below shows how evaluation can be implemented.

# create array to store collapse values under both policies
collapse_days = np.zeros([len(param_values), 2])

# evaluate performance under every state
for i in range(len(param_values)):

    additional_inputs = np.append(['Previous_Prey'],
                                  [param_values[i,0],
                                   param_values[i,1],
                                   param_values[i,2],
                                   param_values[i,3],
                                   param_values[i,4],
                                   param_values[i,5],
                                   param_values[i,6],
                                   param_values[i,7],
                                   param_values[i,8]])

    collapse_days[i,0]=fish_game(highprofitpolicy, additional_inputs)[1][0]
    collapse_days[i,1]=fish_game(mostrobustpolicy, additional_inputs)[1][0]
# load the simulation data from our msdbook package data
collapse_days = msdbook.load_collapse_data()

B.1.1.5. Step 4: Calculate sensitivity indices#

Now we use a Sobol sensitivity analysis to calculate first-order, second-order, and total-order sensitivity indices for each parameter and for each of the two policies. These indicies help determine which factors explain the most variability in the number of days of predator population collapse.

#Perform the Sobol SA for the profit-maximizing solution
Si_profit = sobol.analyze(problem, collapse_days[:, 0],
                          calc_second_order=False,
                          conf_level=0.95,
                          print_to_console=True)
#Perform the Sobol SA for the robust solution
Si_robustness = sobol.analyze(problem,
                              collapse_days[:, 1],
                              calc_second_order=False,
                              conf_level=0.95,
                              print_to_console=True)
              ST   ST_conf
a       0.226402  0.036146
b       0.066819  0.013347
c       0.004395  0.004023
d       0.024509  0.006993
h       0.009765  0.005488
K       0.020625  0.009494
m       0.897971  0.066470
sigmaX  0.000136  0.000149
sigmaY  0.000739  0.001040
              S1   S1_conf
a       0.087936  0.044236
b       0.000554  0.021474
c      -0.002970  0.004590
d       0.001206  0.015881
h       0.004554  0.007998
K       0.003843  0.012661
m       0.751301  0.071862
sigmaX -0.000325  0.001245
sigmaY -0.001887  0.002768

Looking at the total-order indices, (ST) factors \(m\), \(a\), \(b\), \(d\) and \(K\) explain a non-negligible amount of variance therefore have an effect on the stability of this system. Looking at the first-order indices (S1), we also see that besides factors \(m\) and \(a\), all other factors are important in this system through their interactions, which make up the difference between their S1 and ST indices. This shows the danger of limiting sensitivity analyses to first order effects, as factor importance might be significantly misjudged.

These findings are supported by the analytical condition of equilibrium stability in this system:

_images/eqn4.png

In an unharvested system, this condition is both necessary and sufficient for the equilibrium of the two species coexisting to be stable.

When adaptive human action is introduced however, this condition is still necessary, but no longer sufficient, as harvesting reduces the numbers of prey fish and as a result reduces the resources for the predator fish. Since this harvesting value is not constant, but can dynamically adapt according to the harvester’s objectives, it cannot be introduced into this simple equation.

B.1.1.6. Step 5: Explore relationship between uncertain factors and performance#

In the following steps, we will use the results of our sensitivity analysis to investigate the relationships between parametric uncertainty, equilibrium stability and the performance of the two policies.

We can use the top three factors identified (\(m\), \(a\), and \(b\)) to visualize the performance of our policies in this three-dimensional parametric space.

We first define the stability condition, as a function of \(b\) and \(m\), and calculate the corresponding values of \(a\).

def inequality(b, m, h, K):
    return ((b**m)/(h*K)**(1-m))

# boundary interval that separates successful and failed states of the world
b = np.linspace(start=0.005, stop=1, num=1000)
m = np.linspace(start=0.1, stop=1.5, num=1000)
h = np.linspace(start=0.001, stop=1, num=1000)
K = np.linspace(start=100, stop=2000, num=1000)
b, m = np.meshgrid(b, m)
a = inequality(b, m, h, K)
a = a.clip(0,2)

Tip

View the source code used to create this plot here: plot_factor_performance

# generate plot
ax1, ax2 = msdbook.plot_factor_performance(param_values, collapse_days, b, m, a)
_images/fishery_output_22_0.png

These figures show the combinations of factors that lead to success or failure in different states of the world for the profit-maximizing and robust policies. Each point is a state of the world, characterized by specific values of the parameters, and ideally, we would like the color of the point to be blue, to represent that there are a low number of days with a predator collapse in that world. The gray curve denotes the highly non-linear nature of the boundary, defined by the stability condition, that separates successful and failed states of the world. The figures demonstrate the following key points:

First, as asserted above, the policies interact with the system in different and complex ways. In the presence of human action, the stability condition is not sufficient in determining whether the policy will succeed, even though it clearly shapes the system in a fundamental manner.

Secondly, the robust policy manages to avoid collapse in many more of the sampled states of the world, indicated by the number of blue points. The robust policy avoids collapse in 31% of worlds versus 14% in the profit-maximizing policy.This presents a clear tradeoff between profit-maximizing performance androbustness against uncertainty.

B.1.1.7. Tips to Apply Sobol SA and Scenario Discovery to your Problem#

In this tutorial, we demonstrated a Sobol SA to identify the most important factors driving the behavior of a system (i.e. the number of the collapse days). In order to apply this methodology to your problem, you will need to have a set of optimized policies for your system that you are interested in analyzing. The general workflow is as follows:

  1. Choose sampling bounds for your parameters and set up the problem dictionary as in Step 2 above.

  2. Generate samples, or alternative states of the world using the saltelli.sample function.

  3. Evaluate your policies on the alternative states of the world. For your application, you will also need to develop a rule for determining success or failure of your policy in a new SOW. In this tutorial, success was denoted by a small number of collapse days. Ultimately, the rule will be specific to your application and can include various satisficing criteria.

  4. Calculate the Sobol indices and discover the most important parameters driving success and failure.

  5. Finally, use a similar plotting procedure as in step 5 to identify the combination of parameter values that lead to success and failure in the system.

B.2. Sobol SA Tutorial#

Note

Run the tutorial interactively: Sobol SA Tutorial.
Please be aware that notebooks can take a couple minutes to launch.
To run the notebooks yourself, download the files here and use these requirements.

B.2.1. Tutorial: Sensitivity Analysis (SA) using the Saltelli sampling scheme with Sobol SA#

In this tutorial, we will set up a workflow to investigate how sensitive the output of a function is to its inputs. Why might you want to do this? Imagine that this function represents a complex system, such as the rainfall-runoff process of a watershed model, and that you, the researcher, want to investigate how your choice of input parameter values are affecting the model’s characterization of runoff in the watershed. Your parameter values are likely uncertain and can take on any value in a pre-defined range. Using a Sobol SA will allow you to sample different values of your parameters and calculate how sensitive your output of interest is to certain parameters. Below, we demonstrate Sobol SA for a simple function to illustrate the method, but the workflow can be applied to your own problem of interest!

In order to conduct this analysis, we will use the popular Python Sensitivity Analysis Library (SALib) to:

  1. Generate a problem set as a dictionary for our Ishigami function that has three inputs

  2. Generate 2048 samples for our problem set using the Saltelli [1] [2] sampling scheme

  3. Execute the Ishigami function for each of our samples and gather the outputs

  4. Compute the sensitivity analysis to generate first-order and total-order sensitivity indices using the Sobol [3] method

  5. Interpret the meaning of our results

B.2.1.1. Let’s get started!#

NOTE: Content from this tutorial is taken directly from the SALib “Basics” walkthrough. To step through the notebook, execute each gray (code) box by typing “Shift+Enter”.

#Import relevant libraries
import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits import mplot3d

from SALib.sample import saltelli
from SALib.analyze import sobol
from SALib.test_functions import Ishigami

B.2.1.2. Step 1: Generate the problem dictionary#

The Ishigami function is of the form:

\[f(x_1,x_2,x_3) = sin(x_1)+asin^2(x_2)+bx_3^4sin(x_1)\]

The function has three inputs, 𝑥1, 𝑥2, 𝑥3 where 𝑥𝑖 ∈ [−𝜋, 𝜋]. The constants \(a\) and \(b\) are defined as 7.0 and 0.1 respectively.

#Create a problem dictionary. Here we supply the number of variables, the names of each variable, and the bounds of the variables.
problem = {
    'num_vars': 3,
    'names': ['x1', 'x2', 'x3'],
    'bounds': [[-3.14159265359, 3.14159265359],
               [-3.14159265359, 3.14159265359],
               [-3.14159265359, 3.14159265359]]
}

B.2.1.3. Step 2: Generate samples using the Saltelli sampling scheme#

Sobol SA requires the use of the Saltelli sampling scheme. The output of the saltelli.sample function is a NumPy array that is of shape 2048 by 3. The sampler generates 𝑁∗(2𝐷+2) samples, where in this example, N is 256 (the argument we supplied) and D is 3 (the number of model inputs), yielding 2048 samples. The keyword argument calc_second_order=False will exclude second-order indices, resulting in a smaller sample matrix with 𝑁∗(𝐷+2) rows instead. Below, we plot the resulting Saltelli sample.

#Generate parmeter values using the saltelli.sample function
param_values = saltelli.sample(problem, 256)

print(f"`param_values` shape:  {param_values.shape}")
param_values shape:  (2048, 3)
#Plot the 2048 samples of the parameters

fig = plt.figure(figsize = (7, 5))
ax = plt.axes(projection ="3d")
ax.scatter3D(param_values[:,0], param_values[:,1], param_values[:,2])
ax.set_xlabel('X1 Parameter')
ax.set_ylabel('X2 Parameter')
ax.set_zlabel('X3 Parameter')
plt.title("Saltelli Sample of Parameter Values")

plt.show()
_images/output_7_0.png

B.2.1.4. Step 3: Execute the Ishigami function over our sample set#

SALib provides a nice wrapper to the Ishigami function that allows the user to directly pass the param_values array we just generated into the function directly.

Y = Ishigami.evaluate(param_values)

B.2.1.5. Step 4: Compute first-, second-, and total-order sensitivity indices using the Sobol method#

The sobol.analyze function will use our problem dictionary and the result of the Ishigami runs (Y) to compute first-, second-, and total-order indicies.

Si = sobol.analyze(problem, Y)

Si is a Python dict with the keys “S1”, “S2”, “ST”, “S1_conf”, “S2_conf”, and “ST_conf”. The _conf keys store the corresponding confidence intervals, typically with a confidence level of 95%. Use the keyword argument print_to_console=True to print all indices. Or, we can print the individual values from Si as shown in the next step.

B.2.1.6. Step 5: Interpret our results#

We execute the following code and take a look at our first-order indices (S1) for each of our three inputs. These indicies can be interpreted as the fraction of variance in the output that is explained by each input individually.

first_order = Si['S1']

print('First-order:')
print(f"x1: {first_order[0]}, x2: {first_order[1]}, x3: {first_order[2]}")
First-order:
x1: 0.3184242969763115, x2: 0.4303808201623416, x3: 0.022687722804980225

If we were to rank the importance of the inputs in how much they individually explain the variance in the output, we would rank them from greatest to least importance as follows: 𝑥2, 𝑥1 and then 𝑥3. Since 𝑥3 only explains 2% of the output variance, it does not explain output variability meaningfully. Thus, this indicates that there is contribution to the output variance by 𝑥2 and 𝑥1 independently, whereas 𝑥3 does not contribute to the output variance. Determining what inputs are most important or what index value is meaningful is a common question, but one for which there is no general rule or threshold. This question is problem and context-dependent, but procedures have been identified to rank order influential inputs and which can be used to identify the least influential factors. These factors can be fixed to simplify the model [4] [5] [6].

Next, we evaluate the total-order indices, which measure the contribution to the output variance caused by varying the model input, including both its first-order effects (the input varying alone) and all higher-order interactions across the input parameters.

total_order = Si['ST']

print('Total-order:')
print(f"x1: {total_order[0]}, x2: {total_order[1]}, x3: {total_order[2]}")
Total-order:
x1: 0.5184119098161343, x2: 0.41021260250026054, x3: 0.2299058431439953

The magnitude of the total order indices are substantially larger than the first-order indices, which reveals that higher-order interactions are occurring, i.e. that the interactions across inputs are also explaining some of the total variance in the output. Note that 𝑥3 has non-negligible total-order indices, which indicates that it is not a consequential parameter when considered in isolation, but becomes consequential and explains 25% of variance in the output through its interactions with 𝑥1 and 𝑥2.

Finally, we can investigate these higher order interactions by viewing the second-order indices. The second-order indicies measure the contribution to the output variance caused by the interaction between any two model inputs. Some computing error can appear in these sensitivity indices, such as negative values. Typically, these computing errors shrink as the number of samples increases.

second_order = Si['S2']

print("Second-order:")
print(f"x1-x2:  {second_order[0,1]}")
print(f"x1-x3:  {second_order[0,2]}")
print(f"x2-x3:  {second_order[1,2]}")
Second-order:
x1-x2:  -0.043237389723234154
x1-x3:  0.17506452088709862
x2-x3:  -0.03430682392607577

We can see that there are strong interactions between 𝑥1 and 𝑥3. Note that in the Ishigami function, these two variables are multiplied in the last term of the function, which leads to interactive effects. If we were considering first order indices alone, we would erroneously assume that 𝑥3 explains no variance in the output, but the second-order and total order indices reveal that this is not the case. It’s easy to understand where we might see interactive effects in the case of the simple Ishigami function. However, it’s important to remember that in more complex systems, there may be many higher-order interactions that are not apparent, but could be extremely consequential in explaining the variance of the output.

B.2.1.7. Tips to Apply Sobol SA to Your Own Problem#

In this tutorial, we demonstrated how to apply an SA analysis to a simple mathematical test function. In order to apply a Sobol SA to your own problem, you will follow the same general workflow that we defined above. You will need to:

  1. Choose sampling bounds for your parameters and set up the problem dictionary as in Step 1 above.

  2. Generate samples using the saltelli.sample function. This step is problem-dependent and note that the Sobol method can be computationally intensive depending on the model being analyzed. For example, for a simple rainfall-runoff model such as HYMOD, it has been recommended to run a sample size of at least N = 10,000 (which translates to 60,000 model runs). More complex models will be slower to run and will also require more samples to calculate accurate estimates of Sobol indices. Once you complete this process, pay attention to the confidence bounds on your sensitivity indices to see whether you need to run more samples.

  3. Run the parameter sets through your model. In the example above, the Ishigami function could be evaluated through SALib since it is a built in function. For your application, you will need to run these parameter sets through the problem externally and save the output. The output file should contain one row of output values for each model run.

  4. Calculate the Sobol indices. Now, the Y will be a numpy array with your external model output and you will need to include the parameter samples as an additional argument.

  5. Finally, we interpet the results. If the confidence intervals of your dominant indices are larger than roughly 10% of the value itself, you may want to consider increasing your sample size as computation permits. You should additionally read the references noted in Step 5 above to understand more about identifying important factors.

References

B.3. Logistic Regression Tutorial#

Note

Run the tutorial interactively: Logistic Regression Tutorial.
Please be aware that notebooks can take a couple minutes to launch.
To run the notebooks yourself, download the files here and use these requirements.

B.3.1. Tutorial: Logistic Regression for Factor Mapping#

This tutorial replicates a scenario discovery analysis performed in Hadjimichael et al. (2020).

B.3.1.1. Background#

Planners in the the Upper Colorado River Basin (UCRB, shown in the figure below) are seeking to understand the vulnerability of water users to uncertainties stemming from climate change, population growth and water policy changes. The UCRB spans 25,682 km2 in western Colorado and is home to approximately 300,000 residents and 1,012 km2 of irrigated land. Several thousand irrigation ditches divert water from the main river and its tributaties for irrigation (shown as small black dots in the figure). Transmountain diversions of approximately 567,400,000 m3 per year are exported for irrigation, industrial and municipal uses in northern and eastern Colorado, serving the major population centers of Denver and Colorado Springs. These diversions are carried through tunnels, shown as large black dots in the figure.

_images/basin_map.png

An important planning consideration is the water rights of each user, defined by seniority across all water uses (irrigation diversions, transboundary diversions, power plants etc.) in the basin. To assess the vulnerability of users with varying degrees of water rights seniority, planners simulate the system across an ensemble of scenarios using the state of Colorado’s StateMod platform. The model simulates streamflow, diversions, instream demands, and reservoir operations.

Hadjimichael et al. (2020) employ an exploratory analysis by simulating a large ensemble of plausible scenarios using StateMod and then identifying consequential decision-relevant combinations of uncertain factors, termed scenario discovery. Focusing on decision-relevant metrics (metrics that are important to the user, the scenario discovery is applied to the water shortages experienced by each individual user (i.e., not on a single basin-wide or sector-wide metric). For this training example, we’ll be performing scenario discovery for three different water users: two irrigation users and one municipal user.

B.3.1.2. Let’s get started!#

In this tutorial, we will be loading in data that has been produced in Hadjimichael et al. (2020). Before we start our analysis, we’ll load the relevant Python libraries, example data, and information for the three users.

#import libraries
import msdbook
import numpy as np
import pandas as pd
import matplotlib as mpl
import matplotlib.pyplot as plt

# load example data from Hadjimichael et al. (2020)
msdbook.install_package_data()

# Select the IDs for the three users that we will perform the analysis for
all_IDs = ['7000550','7200799','3704614']
usernames = ['Medium seniority irrigation',
             'Low seniority irrigation',
             'Transbasin municipal diversion']
nStructures = len(all_IDs)
Downloading example data for msdbook version 0.1.5...
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/uncertain_params_bounds.txt
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_metric_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_vary_delta.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_mth_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/solutions.resultfile
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/3704614_heatmap.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/LHsamples_original_1000.txt
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/3704614_pseudo_r_scores.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/param_values.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_yr_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_mth_delta.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7000550_pseudo_r_scores.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/collapse_days.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/hymod_params_256samples.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_vary_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7000550_heatmap.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7200799_heatmap.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_yr_delta.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7200799_pseudo_r_scores.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/LeafCatch.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/hymod_simulations_256samples.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/Robustness.txt

B.3.1.3. Step 1: Load Latin hypercube sample and set up problem#

To examine regional vulnerability, we generate an ensemble of plausible future states of the world (SOWs) using Latin Hypercube Sampling. For this tutorial, we’ll load a file containing 1,000 samples across 14 parameters. The sampled parameters encompass plausible changes to the future state of the basin, including changes to hydrology, water demands (irrigation, municipal & industry, transbasin), and institutional and environmental factors (environmental flows, reservoir storage, operation of the Shoshone Power Plant). These samples are taken from ranges identified in param_bounds. Below we load in the 1000 samples, the range of values that the samples can take for each parameter, and the parameter names. More information on what each parameter constitutes can be found in Table 1 of Hadjimichael et al., 2020.

#Identify the bounds for each of the 14 parameters
param_bounds = msdbook.load_basin_param_bounds()

#Load in the parameter samples
LHsamples = msdbook.load_lhs_basin_sample()

#Create an array of the parameter names
param_names=['Irrigation demand multiplier','Reservoir loss','Transbasin demand multiplier',
             'Municipal & industrial multiplier', 'Shoshone','Environmental flows',
             'Evaporation change','Mean dry flow','Dry flow variance',
             'Mean wet flow','Wet flow variance','Dry-dry probability',
             'Wet-wet probability', 'Snowmelt shift']

B.3.1.4. Step 2: Define decision-relevant metrics for illustration#

Scenario discovery attempts to identify parametric regions that lead to ‘success’ and ‘failure’. For this demonstration we’ll be defining ‘success’ as states of the world where a shortage level doesn’t exceed its historical frequency.

B.3.1.5. Step 3: Run the logistic regression#

Logistic regression estimates the probability that a future SOW will be classified as a success or failure given a set of performance criteria. A logistic regression model is defined by:

\[ln \bigg (\frac{p_i}{1-p_i} \bigg ) = X^T_i \beta\]

where \(p_i\) is the probability the performance in the \(i^{th}\) SOW will be classified as a success, \(X_i\) is the vector of covariates describing the \(i^{th}\) SOW, and \(\beta\) is the vector of coefficients describing the relationship between the covariates and the response, which here will be estimated using maximum likelihood estimation.

A logistic regression model was fit to the ensemble of SOWs using the performance criteria defined in step 2. Logistic regression modeling was conducted using the Statsmodel Python package. The data required for the full analysis is too large to include in this tutorial, but results can be found in the data file loaded below.

The results files contain the occurence of different shortage frequency and magnitude combinations under the experiment, in increments of 10, between 0 and 100. These combinations (100 for each user) are alternative decision-relevant metrics that can be used for scenario discovery.

# Set arrays for shortage frequencies and magnitudes
frequencies = np.arange(10, 110, 10)
magnitudes = np.arange(10, 110, 10)
realizations = 10

# Load performance and pseudo r scores for each of the users
results = [msdbook.load_user_heatmap_array(all_IDs[i]) / 100 for i in range(len(all_IDs))]

B.3.1.6. Step 4: Factor ranking#

To rank the importance of each uncertain factor, we utilize McFadden’s psuedo-R2, a measure that quantifies the improvement of the model when utilizing each given predictor as compared to prediction using the mean of the data set:

\[R^2_{McFadden}=1-\frac{ln \hat{L}(M_{full})}{ln \hat{L}(M_{intercept})}\]

Here \(ln \hat{L}(M_{full})\) is the log likelihood of the full model (including the predictor) and \(ln \hat{L}(M_{intercept})\) is the log likelihood of the intercept model (which predicts the mean probability of success across all SOWs).

Higher values of McFadden’s psuedo-R2 indicate higher factor importance (when the likelihood of the full model approaches one, the ratio of the likelihood of the full model compared to the intercept model will get very small).

#Load the pseudo-R^2 scores
scores = [msdbook.load_user_pseudo_scores(all_IDs[i]) for i in range(len(all_IDs))]

# Select indices of frequency and magnitudes that will be used for the visualization
freq = [1,0,0]
mag = [7,3,7]

B.3.1.7. Step 5: Draw factor maps#

The McFadden’s psuedo-R2 scores files contain preliminary logistic regression results on parameter importance for each of these combinations. Using these psuedo-R2 scores we will identify the two most important factors for each metric which we’ll use to generate the final scenario discovery maps (note: there may be more than two important metrics for each user, but here we will demonstrate by mapping two).

# setup figure
fig, axes = plt.subplots(3,1, figsize=(6,18), tight_layout=True)
fig.patch.set_facecolor('white')

for i in range(len(axes.flat)):

    ax = axes.flat[i]

    allSOWsperformance = results[i]
    all_pseudo_r_scores = scores[i]

    # construct dataframe
    dta = pd.DataFrame(data=np.repeat(LHsamples, realizations, axis = 0), columns=param_names)
    dta['Success'] = allSOWsperformance[freq[i],mag[i],:]

    pseudo_r_scores = all_pseudo_r_scores[str(frequencies[freq[i]])+'yrs_'+str(magnitudes[mag[i]])+'prc'].values
    top_predictors = np.argsort(pseudo_r_scores)[::-1][:2] #Sort scores and pick top 2 predictors

    # define color map for dots representing SOWs in which the policy
    # succeeds (light blue) and fails (dark red)
    dot_cmap = mpl.colors.ListedColormap(np.array([[227,26,28],[166,206,227]])/255.0)

    # define color map for probability contours
    contour_cmap = mpl.cm.get_cmap('RdBu')

    # define probability contours
    contour_levels = np.arange(0.0, 1.05,0.1)

    # define base values of the predictors
    SOW_values = np.array([1,1,1,1,0,0,1,1,1,1,1,0,0,0]) # default parameter values for base SOW
    base = SOW_values[top_predictors]
    ranges = param_bounds[top_predictors]

    # define grid of x (1st predictor), and y (2nd predictor) dimensions
    # to plot contour map over
    xgrid = np.arange(param_bounds[top_predictors[0]][0],
                      param_bounds[top_predictors[0]][1], np.around((ranges[0][1]-ranges[0][0])/500,decimals=4))
    ygrid = np.arange(param_bounds[top_predictors[1]][0],
                      param_bounds[top_predictors[1]][1], np.around((ranges[1][1]-ranges[1][0])/500,decimals=4))
    all_predictors = [ dta.columns.tolist()[i] for i in top_predictors]
    dta['Interaction'] = dta[all_predictors[0]]*dta[all_predictors[1]]

    # logistic regression here
    predictor_list = [all_predictors[i] for i in [0,1]]
    result = msdbook.fit_logit(dta, predictor_list)

    # plot contour map
    contourset = msdbook.plot_contour_map(ax, result, dta, contour_cmap,
                                          dot_cmap, contour_levels, xgrid,
                                          ygrid, all_predictors[0], all_predictors[1], base)

    ax.set_title(usernames[i])

# set up colorbar
cbar_ax = fig.add_axes([0.98, 0.15, 0.05, 0.7])
cbar = fig.colorbar(contourset, cax=cbar_ax)
cbar_ax.set_ylabel('Probability of Success', fontsize=16)
cbar_ax.tick_params(axis='y', which='major', labelsize=12)
/srv/conda/envs/notebook/lib/python3.7/site-packages/statsmodels/base/model.py:127: ValueWarning: unknown kwargs ['disp']
  warnings.warn(msg, ValueWarning)
Optimization terminated successfully.
         Current function value: 0.378619
         Iterations 8
Optimization terminated successfully.
         Current function value: 0.397285
         Iterations 8
Optimization terminated successfully.
         Current function value: 0.377323
         Iterations 8
_images/notebook_logistic_output_11_1.png

The figure above demonstrates how different combinations of the uncertain factors lead to success or failure in different states of the world, which are denoted by the blue and red dots respectively. The probability of success and failure are further denoted by the contours in the figure. Several insights can be drawn from this figure.

First, using metrics chosen to be decision-relevant (specific to each user) causes different factors to be identified as most important by this scenario-discovery exercise (the x- and y-axes for each of the subplots). In other words, depending on what the decision makers of this system want to prioritize they might choose to monitor different uncertain factors to track performance.

Second, in the top panel, the two identified factors appear to also have an interactive effect on the metric used (shortages of a certain level and frequency in this example). In terms of scenario discovery, the Patient Rule Induction Method (PRIM) or Classification And Regression Trees (CART) would not be able to delineate this non-linear space and would therefore misclassify parameter combinations as ‘desirable’ when they were in fact undesirable, and vice versa.

Lastly, logistic regression also produces contours of probability of success, i.e. different factor-value combinations are assigned different probabilities that a shortage level will be exceeded. This allows the decision makers to evaluate these insights while considering their risk aversion.

B.3.1.8. Tips to Apply Scenario Discovery to Your Own Problem#

In this tutorial, we demonstrated how to perform a scenario discovery analysis for three different users in the UCRB. The analysis allowed us to determine which parameters the users would be most affected by and to visualize how different ranges of these parameters lead to success and failure for different users. This framework can be applicable to any other application where it is of interest to characterize success and failure based on uncertain parameter ranges. In order to apply the same framework to your own problem:

  1. Choose sampling bounds for your parameters of interest, which will represent uncertainties that characterize your system.

  2. Generate samples for these parameters (this can be done using the saltelli.sample function or externally).

  3. Define what constitutes success and failure in your problem. In this tutorial, success was defined based on not surpassing the historical drought frequency. Choose a metric that is relevant to your problem and decision-makers that might be involved. If your model involves an optimization, you can also define metrics based on meeting certain values of these objectives.

  4. Run the parameter sets through your model and calculate success and failure based on your metrics and across different users if applicable. This step will allow you to create the scatter plot part of the final figure.

  5. If it is of interest, the contours on the figure can be created by fitting the logistic regression model in a similiar manner as denoted in Steps 3 and 5 of the tutorial.

B.4. HYMOD Dynamics Tutorial#

Note

Run the tutorial interactively: HYMOD Notebook.
Please be aware that notebooks can take a couple minutes to launch.
To run the notebooks yourself, download the files here and use these requirements.

B.4.1. Tutorial: Sensitivity Analysis of the HYMOD Model#

The purpose of this tutorial is to demonstrate the global sensitivity analysis concepts and tools established in the Section 3.1 of the main text of this eBook. This demonstration will highlight the central role of design of experiments (Section 3.3), when implementing global sensitivity analysis tools described in Section 3.4.

We’ll explore these tools and concepts using the HYdrological MODel (HYMOD), a rainfall-runoff model developed and used for river flow forecasting. HYMOD was chosen for demonstration because its purpose is to abstract highly complex and non-linear systems. The methods demonstrated in thistutorial can be applied to numerical models that simulate other complex non-linear systems.

This tutorial will first introduce HYMOD and use it to simulate streamflows in a river basin. Next, we’ll employ sensitivity analysis concepets described in Section 3 of the main text to examine how values of HYMOD’s parameters impact streamflow predictions. We’ll then explore how the effects of these parameters may change over time using time-varying sensitivtiy analysis. Finally, we’ll demonstrate concepts presented in Chapter 7 through two ensemble-based methods of uncertainty quantification - Generalized Likelihood Uncertainty Estimation (GLUE) and Pre-Calibration.

The tutorial includes the following steps:

1.1 - Introduction to a simple hydrologic model (HYMOD)

1.2 - Input Data

1.3 - Running a basic simulation

1.4 - Model outputs

2.1 - Design of Experiments

2.2 - Sensitivity analysis for one output

2.3 - Sensitivity analysis across multiple outputs

2.4 - Time-varying sensitivity analysis

B.4.2. 1 - Introduction to HYMOD#

1.1 Overview

HYMOD is a hydrologic model (rainfall-runoff model) that simulates key hydrologic fluxes such as infiltration, streamflow and evapotranspiration. The model was originally developed and used for river flow forecasting, but it has also been been used to explore different sensitivity analysis (e.g., Herman et al., 2013), uncertainty quantification (e.g., Smith et al., 2008), and optimization (e.g., Ye et al., 2014) concepts.

HYMOD accepts two inputs - daily precepitation and daily potential evapotranspiration (PET)- and generates predicitons of daily streamflow. HYMOD abstracts the highly non-linear process of runoff routing by dividing the flow into two components: quick flow, representing precipitation that quickly runs off the surface of the watershed into the stream, and slow flow, that moves through the soil and takes much longer to arrive at the stream.

To generate streamflow predictions, HYMOD first models vertical processes within the watershed to determine how much water infiltrates and evaporates from the soil at a given time step. It then determines how much water should be partitioned into quick flow and slow flow processes. Within each process it abstracts residence time (the time it takes a unit volume of water to move through the watershed and into the stream) using a series of “reservoirs” each with a calibrated residence time.

HYMOD’s representation of hydrologic processes are shown Figure 1 below and controlled by the following parameters:

\(H_{uz}\): the maximum water storage capacity of the soil (mm)

\(B_{exp}\): parameters describing the degree of spatial variability within the basin between 0 and Huz

\(Alp\): Fraction of runoff contributing to quick flow

\(K_q\): Quick flow residence time of linear infinite reservoir (the Kq values of all three linear reservoirs are the same)

\(K_s\): Slow flow residence time of linear infinite reservoir

_images/hymod_schematic-DAVE.png

HYMOD models the fraction of water that is stored in the soil \((F(XH_{uz}))\) using the following relationship:

\[F(XH_{uz}) = 1 - (1 - \frac{XH_{uz}}{H_{uz}})^{B}\]

where \(XH_{uz}\) is the water storage capacity of the soil; \(H_{uz}\) is the parameter describing basin maximum water storage capacity (mm); and \(B\) is the parameter describing the degree of spatial variability within the basin.

The portion of precipitation that exceeds the water storage capacity is treated as runoff.

To route runoff to streamflow, the excess runoff from the vertical processes is split into quick flow and slow flow. The proportion of runoff partitioned into quick flow and slow flow is determined by a parameter \(Alp\), which ranges between 0 and 1. Quick flow is routed through \(N\) identical quick flow tanks \(Q1, Q2... QN\) (shown above as \(N=3\)). The rate at which runoff moves through the quick flow system is described by the residence time of the quick frlow tanks, \(Kq\) (day). Slow flow is routed through a parallel slow flow tank and the rate at which slow flow is routed is described by the slow flow residences time, \(Ks\) (day).

Citation: Wagener, T., Boyle, D. P., Lees, M. J., Wheater, H. S., Gupta, H. V., & Sorooshian, S. (2001). A framework for development and application of hydrological models. Hydrology and Earth System Sciences, 5(1), 13-26.

1.2 Input data

The HYMOD model only requires precipitation and potential evapotranspiration as inputs. For this example, we’ll run HYMOD using data from the Leaf River, a humid catchment located north of Collins Mississippi that has been widely used to explore HYMOD. The dataset also includes daily observed runoff that we later use to evaluate the performace of each sensitvity analysis sample set.

In the following section of code, we’ll load the necessary python libraries and read in the input file. For this exercise we’ll only use the first eleven years of data. The first five rows of the input dataset are printed to show what they look like:

import msdbook

import numpy as np
import pandas as pd
import seaborn as sns

from sklearn import metrics
from matplotlib import pyplot as plt

# load example data
msdbook.install_package_data()

# load the Leaf River HYMOD input file
leaf_data = msdbook.load_hymod_input_file()

# extract the first eleven years of data
leaf_data = leaf_data.iloc[0:4015].copy()

print('Leaf River Data structure:')

# There are only three columns in the file including precipitation, potential evapotranspiration and  streamflow
leaf_data.head()
Downloading example data for msdbook version 0.1.5...
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/uncertain_params_bounds.txt
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_metric_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_vary_delta.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_mth_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/solutions.resultfile
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/3704614_heatmap.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/LHsamples_original_1000.txt
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/3704614_pseudo_r_scores.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/param_values.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_yr_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_mth_delta.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7000550_pseudo_r_scores.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/collapse_days.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/hymod_params_256samples.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_vary_s1.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7000550_heatmap.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7200799_heatmap.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/sa_by_yr_delta.npy
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/7200799_pseudo_r_scores.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/LeafCatch.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/hymod_simulations_256samples.csv
Unzipped: /srv/conda/envs/notebook/lib/python3.7/site-packages/msdbook/data/Robustness.txt
Leaf River Data structure:
Precip Pot_ET Strmflw
0 0.0 4.60 0.29
1 0.0 4.31 0.24
2 0.0 4.33 0.21
3 0.0 4.78 0.19
4 0.0 2.91 0.18

To visualize catchment hydrology, streamflow and precipitation data are usually plotted together as a combined hydrograph (streamflow ) and hyetograph (rainfall, from Greek.hyetos, “rain”). Streamflow is plotted as a time series, while rainfall is shown as an inverted bar plot along the top of the graph. Streamflow labels are shown on the left y-axis, while rainfall labels are shown on the right y-axis.

# make an axis for the hydrograph
fig, strmflw_ax = plt.subplots(figsize=[12,6])
strmflw_ax.set_ylim([0, 50])

#make a second y-axis for the hyetograph
precip_ax = strmflw_ax.twinx()
precip_ax.set_ylim([0, 200])
precip_ax.invert_yaxis()

precip = leaf_data['Precip']
strmflw_ax.plot(range(0, len(leaf_data['Precip'])), leaf_data['Strmflw'], color='lightcoral')
strmflw_ax.set_ylabel('Streamflow (mm/day)')

precip_ax.bar(range(0, len(leaf_data['Precip'])), leaf_data['Precip'], width=2)
precip_ax.set_ylabel('Rainfall (mm/day)')
precip_ax.legend(['Precip'], loc='center right')
strmflw_ax.legend(['Streamflow'],bbox_to_anchor=(1, 0.48))
<matplotlib.legend.Legend at 0x7f53b95c6850>
_images/hymod1.png

1.3 Running a Baseline Model Simulation

We’ll start our experiment by running HYMOD using its default parameters.

# assign input parameters to generate a baseline simulated streamflow
Nq = 3  # Number of quickflow routing tanks
Kq = 0.5 # Quickflow routing tanks' rate parameter
Ks =  0.001 # Slowflow routing tank's rate parameter
Alp = 0.5 # Quick/slow split parameter
Huz = 100 # Maximum height of soil moisture accounting tank
B = 1.0 # Scaled distribution function shape parameter

# Note that the number of years is 11. One year of model warm-up and ten years are used for actual simulation
model = msdbook.hymod(Nq, Kq, Ks, Alp, Huz, B, leaf_data, ndays=4015)

1.4 Model Outputs

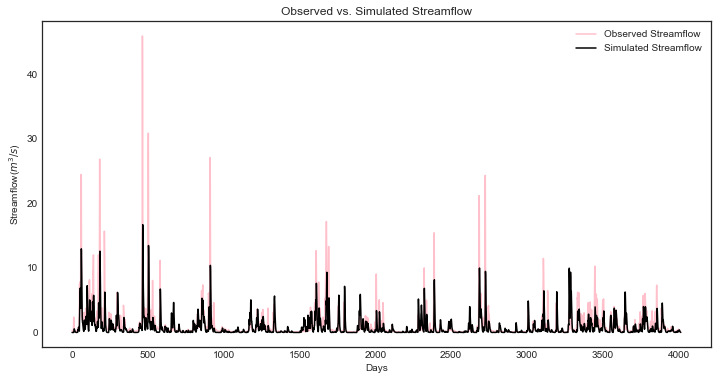

Model outputs include actual evapotranspiration, quick and fast streamflow, and combined runoff. In this tutorial we focus on the total daily runoff, QQ (\(m^3/s\)). We can use the following script to plot simulated streamflow against observed streamflow.

Tip

View the source code used to create this plot here: plot_observed_vs_simulated_streamflow

ax = msdbook.plot_observed_vs_simulated_streamflow(df=leaf_data, hymod_dict=model)
_images/hymod2.png

So how does our model perform? We can investigate model performance across several metrics:

1: Mean Absolute Error (MAE); MAE conveys how the model performs on average across the 10 year simulation period, with smaller values indicating better performance. The absolute value is taken so that positive and negative errors do not cancel each other out.

\[MAE = \frac{1}{N}\sum_{t=0}^N\left\lvert Q_{sim,t}-Q_{obs,t}\right\rvert\]

2: Root Mean Square Error (RMSE); RMSE is sum of square errors across the 10 year simulation period. RMSE is sensitive to large errors between the historical record and the simulated flows, and thus is useful for highlighting the model’s ability to capture of extreme flood events.

\[RMSE = \sqrt{\frac{1}{N}\sum_{t=1}^{N}(Q_{sim,t}-Q_{obs,t})^2}\]

3: Log-Root Mean Square Error (Log(RMSE)) LOG(RMSE) focuses on model performance during low-flow events.

\[LOG(RMSE) = log(RMSE)\]
mae = np.mean(abs(leaf_data['Strmflw'] - model['Q']))
mse = metrics.mean_squared_error(model['Q'], leaf_data['Strmflw'])
rmse = mse**(1/2)

print('MAE: ' + str(mae) + '\nRMSE: ' + str(mse) + '\nLOG(RMSE): ' + str(rmse))
MAE: 1.0787471470460999
RMSE: 4.375695937555197
LOG(RMSE): 2.0918164206151544

The error metrics show that HYMOD performs reasonably well, the MAE is around 1 \(m^3/s\), the RMSE is on the order of 10% of the largest observed streamflow and the LOG(RMSE) is fairly low.

B.4.3. 2- Global Sensitivity Analysis#

2.1 Experimental Design and Setup

Now we’ll examine how sensitive streamflow simulations generated by HYMOD are to the model’s input parameters. We’ll perform global sensitivity analysis (see Section 3.1 of the main text) using the SALib Python library.

from SALib.sample import saltelli
from SALib.analyze import sobol
from SALib.analyze import delta

A first and critical step when conducting sensitivity analysis is determining the experimental design (see Design of Experiments, Section 3.4 of the main text). Our experimental design involves defining the uncertainties that we’ll be examining, the output of interest, the ranges of each uncertainty that will be explored and the strategy for sampling the uncertainty space.

For this experiment we’ll explore the five parameters highlighted in Figure 1. We’ll draw their ranges from existing literature on the model (note Jon H. paper). We’ll use a Sobol sampling an a quasi-random sampling with low sequences approach to sample the uncertainty space (Section 3.3.4).

In this demonstration we’ll utilize Sobol Sensitivity Analysis, a variance based method (Section 3.4.5).

To explore HYMOD’s behavoir, we’ll examine the sensitivity of four model ouputs to input parameters: 1) predicted flow, 2) Mean Absolute Error (compared with the calibaration data set), 3) Root Mean Square Error and 4) Log Root Mean Square Error.

This analysis will employ SALib, a Python implementation also utilized in the other SA tutorial (make this more formal).

To start our analysis, we’ll create a dictionary that describes our model uncertainties and their ranges, this dictionary is named “problem_hymod” (SALib refers to these dictionaries as “problems”).

problem_hymod = {
    'num_vars': 5,
    'names': ['Kq', 'Ks', 'Alp', 'Huz', 'B'],
    'bounds': [[0.1, 1],  # Kq
               [0, 0.1],  # Ks
               [0, 1],    # Alp
               [0.1, 500],  # Huz
               [0, 1.9]]  # B
}

After defining our uncertainites and ranges, we’ll use SALib to sample the uncertainty space and run the model for each of the sample sets. We will load a sample that has already been created param_values_hymod for demonstration purposes. For HYMOD, literature recommends running at least N = 10,000 samples, to keep this demonstration easy to run however, we utilize only 256 sobol samples of uncertainties. To generate accurate approximations of second order sensitivity indicies SALib generates N*(2k+2) sets of samples, where N=256 and k=5 (number of uncertainties). For the math behind why this is needed, see (Saltelli, A., 2002. Making best use of model evaluations to compute sensitivity indices. Computer Physics Communications 145, 280–297. https://doi.org/10.1016/S0010-4655(02)00280-1).

The actual model simulation takes an extended period, so we also load the simulation data from a previous run. The following demonstrates how to conduct this analysis:

# generate 256 samples.
param_values_hymod = saltelli.sample(problem_hymod, 256)

# dictionary to store outputs in
d_outputs = {}

# run simulation for each parameter sample
for i in range(0, len(param_values_hymod)):

    # run model for each sensitivity analysis parameter sets
    hymod_output = msdbook.hymod(Nq,
                                 param_values_hymod[i, 0],
                                 param_values_hymod[i, 1],
                                 param_values_hymod[i, 2],
                                 param_values_hymod[i, 3],
                                 param_values_hymod[i, 4],
                                 leaf_data,
                                 ndays=4015)

    # store the simulated total flow discharge
    d_outputs[f"Q{i}"] = hymod_output["Q"]


Q_df_bw = pd.DataFrame(d_outputs)
# load previously generated parameter values
param_values_hymod = msdbook.load_hymod_params()

# number of samples
n_samples = len(param_values_hymod)

# load previously generated hymod simulated outputs
Q_df_bw = msdbook.load_hymod_simulation()

# column names of each sample simulation number
sample_column_names = [i for i in Q_df_bw.columns if i[0] == 'Q']

A hydrological model such as HYMOD usually includes ordinary differential equations that are sensitive to their initial condition. They also have components in their underlying formulation that have long memory such that prior time steps can affect their current simulations. For example, soil moisture or groundwater can hold water for a long time and therefore they are often considered to exhibit a long memory. This can affect the partitioning of water to runoff and infiltration, while also controlling the generation of base flow. Therefore, it is important to have a reasonable initial value for them. To achieve this, hydrologists usually extend their simulation period and after the simulations, they remove that extended time period that has unreasonable groundwater or surface water values. This time period is called the warm-up time period.

Here we extended our simulation for one year (from 10 years to 11 years) and we removed the first year of simulation, therefore our warm-up period is one year.

# exclude the first year of simulation from the simulations and reset the index
Q_df = Q_df_bw.iloc[365:4015].copy().reset_index(drop=True)

# exclude the first year of the input data and reset the index
leaf_data = leaf_data.iloc[365:4015].copy().reset_index(drop=True)

Now that HYMOD has been warmed up, we’ll examine how HYMOD’s streamflow outputs vary under different sample sets, and compare them with the observed streamflow.

# add date columns to our simulation data frame; for this data our start date is 1/1/2000
date_ts = pd.date_range(start='1/1/2000', periods=3650, freq='D')
Q_df['date'] = date_ts
Q_df['year'] = date_ts.year
Q_df['month'] = date_ts.month
Q_df['day'] = date_ts.day

# aggregate the simulated observed streamflow to monthly mean
df_sim_mth_mean = Q_df.groupby(['year', 'month'])[sample_column_names].mean()

# do the same for the observed data
date_ts = pd.date_range(start='1/1/2000', periods=len(leaf_data), freq='D')
leaf_data['date'] = date_ts
leaf_data['year'] = date_ts.year
leaf_data['month'] = date_ts.month
leaf_data['day'] = date_ts.day

# aggregate the daily observed streamflow to monthly mean
df_obs_mth_mean = leaf_data.groupby(['year', 'month']).mean()

Tip

View the source code used to create this plot here: plot_observed_vs_sensitivity_streamflow

ax = msdbook.plot_observed_vs_sensitivity_streamflow(df_obs=df_obs_mth_mean,
                                                     df_sim=df_sim_mth_mean)
_images/hymod3.png

2.2 Sensitivity of streamflows to model parameters

Now we’ll examine how each of HYMOD’s parameters impact the variance of simulated streamflows. Using SALib we’ll calculate the first order and total order sensitivity indicies of each model parameter. The first order sensitivity index measure’s the individual impact that a given parameter has on the variance of the simulated streamflows. The total order index measures the impact of a given parameter along with all interactions that other parameters have with the given parameter on simulated streamflows.

We’ll start with an matrix, Y, which contains our simulated streamflows for every uncertainty sample. We’ll then use the sobol.analyze function from SALib to calculate the sensitivity indicies (Si). The arguments for this function are the problem dictionary defined in part 2.2 of this tutorial, and the matrix of simulated streamflows, Y.

# overall aggregated indices
Y = Q_df[sample_column_names].mean().to_numpy()

# Perform analysis
Si = sobol.analyze(problem_hymod, Y)

Now we can examine our results, we’ll print the first order and total order Si’s for each parameter, then visualize the results with bar plots

print('First order indices = ', Si['S1'])

print('Total order indicies = ', Si['ST'])

sns.set_style('white')
fig = plt.figure(figsize=(8,4))
ax1 = fig.add_subplot(121)
ax1.bar(np.arange(5), Si['S1'])
ax1.set_xticklabels(['','Kq', 'Ks', 'Alp', 'Huz', 'B'])
ax1.set_ylabel('First order Si')
ax1.set_ylim([0,1])

ax2 = fig.add_subplot(122)
ax2.bar(np.arange(5), Si['ST'])
ax2.set_xticklabels(['','Kq', 'Ks', 'Alp', 'Huz', 'B'])
ax2.set_ylabel('Total order Si')
ax2.set_ylim([0,1])
First order indices =  [9.55550001e-05 7.49249463e-04 5.62386413e-04 7.03327551e-01
 2.53701895e-01]
Total order indicies =  [1.76174200e-06 1.63288175e-03 3.41378460e-04 6.88983864e-01
 2.53922146e-01]
/srv/conda/envs/notebook/lib/python3.7/site-packages/ipykernel_launcher.py:9: UserWarning: FixedFormatter should only be used together with FixedLocator
  if __name__ == '__main__':
/srv/conda/envs/notebook/lib/python3.7/site-packages/ipykernel_launcher.py:15: UserWarning: FixedFormatter should only be used together with FixedLocator
  from ipykernel import kernelapp as app
(0.0, 1.0)
_images/hymod4.png

Our findings indicate that in this instance, the streamflow estimate from HYMOD is highly sensitive to soil moisture parameters Huz and B and hardly affected by the routing parameters. Notably, there is very little interactions between parameters causing the total order indicies to be nearly identical to the first order indicies.

2.3 How do different performance metrics affect the results of our sensitivity analysis?

Streamflow has many different properties. In this section, we discuss how the selection of metrics can lead to fundamentally different sensitivity analysis results. For example, one can only focus on aggregated streamflow metrics such as mean (what has been presented so far), or only on extreme events such as drought or floods.

Here we compare three different metrics: 1- Mean error (ME) 2- Root Mean Square Error (RMSE) 3- Log-Root Mean Square Error (Log(RMSE))

Each of these metrics focuses on a specific attribute of streamflow. For example, RMSE highlights the impacts of extreme flood events, while LOG(RMSE) focuses on model performance during low-flow events.

# calculate error metrics
mae = Q_df[sample_column_names].apply(lambda x: abs(x-leaf_data["Strmflw"]), axis=0)
mse = Q_df[sample_column_names].apply(lambda x: metrics.mean_squared_error(x, leaf_data["Strmflw"]), axis=0)
rmse = mse**(1/2)

# add error metrics to a dictionary
d_metrics = {'MAE': mae.mean().values,
             'RMSE': rmse.values,
             'LOG[RMSE]': np.log10(rmse.values)}

# convert to a dataframe
df_metrics_SA = pd.DataFrame(d_metrics)

We can use the following to calculate the SA indices for each metric and visualize it.

df_metric_s1_result = pd.DataFrame(np.zeros((3, 5)), columns=['Kq', 'Ks', 'Alp', 'Huz', 'B'])
df_metric_sT_result = pd.DataFrame(np.zeros((3, 5)), columns=['Kq', 'Ks', 'Alp', 'Huz', 'B'])

# conduct sensitivity analysis for each metric
for index, i in enumerate(d_metrics.keys()):

    # get the data as a numpy array for the target metric
    Y = d_metrics[i]

    # use the metric to conduct SA
    Si = sobol.analyze(problem_hymod, Y, print_to_console=False)

    # add the sensitivity indices to the output data frame
    df_metric_s1_result.iloc[index, :] = Si['S1']
    df_metric_sT_result.iloc[index, :] = Si['ST']
# create seaborn heatmap with required labels
fig = plt.figure(figsize=(12,4))
ax1 = fig.add_subplot(121)
# labels for y-axis
y_axis_labels = ['Mean Absoulte Error', 'RSME', 'Log(RMSE)']

# plot heatmap
ax1 = sns.heatmap(df_metric_s1_result, yticklabels=y_axis_labels, annot=True,  cmap='inferno_r', cbar_kws={'label': 'Si'}, cbar=False)
ax1.figure.axes[-1].yaxis.label.set_size(14)
ax1.set_title('First Order Sensitivity')

ax2 = fig.add_subplot(122)
ax2 = sns.heatmap(df_metric_sT_result, yticklabels=y_axis_labels, annot=True,  cmap='inferno_r', cbar_kws={'label': 'Si'})
ax2.figure.axes[-1].yaxis.label.set_size(14)
ax2.set_title('Total Order Sensitivity')
Text(0.5, 1.0, 'Total Order Sensitivity')
_images/hymod5.png

The first order sensitivity indicies indicate that HYMOD’s sensitivity to its parameters is different depending on how its output is measured. Unsurprisingly, the mean absolute error is highly sensitive to the soil moisture accounting parameters Huz and B, just like the overall streamflow predictions above. However, when we examine RMSE and log(RMSE), the routing parameters Alp become sensitive, and the sensitivity to parameter B is reduced. As described above, RMSE and LOG(RMSE) respond to model performance in high-flow and low flow periods respectively. Our results indicate that for these flow regimes Alp, the parameter that governs the split between quick and slow flow is an important factor. While still the parameter with the highest most effect on all three measures, Huz is much less influential for RMSE and LOG(RMSE) than it is for MAE.

The total order sensitivity indicies review a different, more complex story. While the MAE sensitivity is relatively governed by first order effects (like the streamflow predictions above), the RMSE and LOG(RMSE) error metrics show significant interactions. Alp has the highest total order sensitivity for RMSE and is eqal to Huz for Log(RMSE). Kq, which has a relatively low first order sensitivity index, shows strong contribution to variance when interactions are taken into account.

Radial convergence plots are a helpful way to visualize the interactions between parameters. These plots array the model parameters in a circle and plot the first order, total order and second order Sobol sensitivity indices for each parameter. The first order sensitivity is shown as the size of a closed circle, the total order as the size of a larger open circle and the second order as the thickness of a line connecting two parameters. Below is an example of a radial convergence plot for the LOG(RMSE) measure. The plot indicates strong interactions between the Huz and Alp parameters, as well as Alp and Kq. There is also an interaction between Alp and Ks.

import numpy as np
import itertools
import seaborn as sns
import math
sns.set_style('whitegrid', {'axes_linewidth': 0, 'axes.edgecolor': 'white'})

def is_significant(value, confidence_interval, threshold="conf"):
    if threshold == "conf":
        return value - abs(confidence_interval) > 0
    else:
        return value - abs(float(threshold)) > 0

def grouped_radial(SAresults, parameters, radSc=2.0, scaling=1, widthSc=0.5, STthick=1, varNameMult=1.3, colors=None, groups=None, gpNameMult=1.5, threshold="conf"):
    # Derived from https://github.com/calvinwhealton/SensitivityAnalysisPlots
    fig, ax = plt.subplots(1, 1)
    color_map = {}

    # initialize parameters and colors
    if groups is None:

        if colors is None:
            colors = ["k"]

        for i, parameter in enumerate(parameters):
            color_map[parameter] = colors[i % len(colors)]
    else:
        if colors is None:
            colors = sns.color_palette("deep", max(3, len(groups)))

        for i, key in enumerate(groups.keys()):
            #parameters.extend(groups[key])

            for parameter in groups[key]:
                color_map[parameter] = colors[i % len(colors)]

    n = len(parameters)
    angles = radSc*math.pi*np.arange(0, n)/n
    x = radSc*np.cos(angles)
    y = radSc*np.sin(angles)

    # plot second-order indices
    for i, j in itertools.combinations(range(n), 2):
        #key1 = parameters[i]
        #key2 = parameters[j]

        if is_significant(SAresults["S2"][i][j], SAresults["S2_conf"][i][j], threshold):
            angle = math.atan((y[j]-y[i])/(x[j]-x[i]))

            if y[j]-y[i] < 0:
                angle += math.pi

            line_hw = scaling*(max(0, SAresults["S2"][i][j])**widthSc)/2

            coords = np.empty((4, 2))
            coords[0, 0] = x[i] - line_hw*math.sin(angle)
            coords[1, 0] = x[i] + line_hw*math.sin(angle)
            coords[2, 0] = x[j] + line_hw*math.sin(angle)
            coords[3, 0] = x[j] - line_hw*math.sin(angle)
            coords[0, 1] = y[i] + line_hw*math.cos(angle)
            coords[1, 1] = y[i] - line_hw*math.cos(angle)
            coords[2, 1] = y[j] - line_hw*math.cos(angle)
            coords[3, 1] = y[j] + line_hw*math.cos(angle)

            ax.add_artist(plt.Polygon(coords, color="0.75"))

    # plot total order indices
    for i, key in enumerate(parameters):
        if is_significant(SAresults["ST"][i], SAresults["ST_conf"][i], threshold):
            ax.add_artist(plt.Circle((x[i], y[i]), scaling*(SAresults["ST"][i]**widthSc)/2, color='w'))
            ax.add_artist(plt.Circle((x[i], y[i]), scaling*(SAresults["ST"][i]**widthSc)/2, lw=STthick, color='0.4', fill=False))

    # plot first-order indices
    for i, key in enumerate(parameters):
        if is_significant(SAresults["S1"][i], SAresults["S1_conf"][i], threshold):
            ax.add_artist(plt.Circle((x[i], y[i]), scaling*(SAresults["S1"][i]**widthSc)/2, color='0.4'))

    # add labels
    for i, key in enumerate(parameters):
        ax.text(varNameMult*x[i], varNameMult*y[i], key, ha='center', va='center',
                rotation=angles[i]*360/(2*math.pi) - 90,
                color=color_map[key])

    if groups is not None:
        for i, group in enumerate(groups.keys()):
            print(group)
            group_angle = np.mean([angles[j] for j in range(n) if parameters[j] in groups[group]])

            ax.text(gpNameMult*radSc*math.cos(group_angle), gpNameMult*radSc*math.sin(group_angle), group, ha='center', va='center',
                rotation=group_angle*360/(2*math.pi) - 90,
                color=colors[i % len(colors)])

    ax.set_facecolor('white')
    ax.set_xticks([])
    ax.set_yticks([])
    plt.axis('equal')
    plt.axis([-2*radSc, 2*radSc, -2*radSc, 2*radSc])
    #plt.show()


    return fig

# define groups for parameter uncertainties
groups={"Soil Moisture" : ["Huz", "B"],
        "Routing" : ["Alp", "Kq", "Ks"]}


fig = grouped_radial(Si, ['Kq', 'Ks', 'Alp', 'Huz', 'B'], groups=groups, threshold=0.025)
Soil Moisture
Routing
_images/hymod6.png

2.4 Time-Varying Sensitivity Analysis

In section 2.5 we saw how performing sensitivity analysis on different measurements of model output can yeild in different results on the importance of each uncertain input. In this section we’ll examine how performing this analysis over time can yeild additional insight into the performance of HYMOD. We’ll first examine how model sensitivities vary by month, then examine how they change across each year of the simulation.

For this demonstration, we’ll focus only on the monthly streamflow predictions generated by HYMOD.

# aggregate simulated streamflow data to monthly time series
df_sim_by_mth_mean = Q_df.groupby('month')[sample_column_names].mean()

# aggregate observed streamflow data to monthly time series
df_obs_by_mth_mean = leaf_data.groupby('month').mean()

We can use the following to calculate the SA indices for each month and visualize it. Results are pre-loaded for efficiency.

# set up dataframes to store outputs
df_mth_s1 = pd.DataFrame(np.zeros((12,5)), columns=['Kq', 'Ks', 'Alp', 'Huz', 'B'])
df_mth_delta = df_mth_s1.copy()

# iterate through each month
for i in range(0, 12):

    # generate the simulation data
    Y = df_sim_by_mth_mean.iloc[i, :].to_numpy()

    # run SA
    Si = delta.analyze(problem_hymod, param_values_hymod, Y, print_to_console=False)

    # add to output dataframes
    df_mth_s1.iloc[i, :] = np.maximum(Si['S1'], 0)
    df_mth_delta.iloc[i, :] = np.maximum(Si['delta'], 0)

# convert to arrays
arr_mth_s1 = df_mth_s1.values
arr_mth_delta = df_mth_delta.values

The following can be used to visualize the time-varying first-order indices. The first order represents the direct impacts of a specific parameter on model outputs.

Tip

View the source code used to create this plot here: plot_monthly_heatmap

# load previously ran data
arr_mth_delta, arr_mth_s1 = msdbook.load_hymod_monthly_simulations()

# plot figure
ax, ax2 = msdbook.plot_monthly_heatmap(arr_sim=arr_mth_s1.T,
                                       df_obs=df_obs_by_mth_mean,
                                       title='First Order - Mean Monthly SA')
_images/hymod7.png

This figure demonstrates the first order sensitivity indices when the streamflow data are aggregated by month. The purple line represents the observed monthly discharge. The figure indicates that the first order indices are highest for B and Huz across all months and lowest for Alp, Ks, and Kq. Note that in the months with the highest flow, Ks becomes an influential parameter.

We can also focus on the total order sensitivity index that includes first-order SA indices and interactions between parameters

# plot figure
ax, ax2 = msdbook.plot_monthly_heatmap(arr_sim=arr_mth_delta.T,
                                       df_obs=df_obs_by_mth_mean,
                                       title='Total Order - Mean monthly SA')
_images/hymod8.png

Notably, the total order sensitivity results are different than the first order sensitivity results, which indicates that interactions between the parameters (particularly in regards to routing parameters \(Kq\), \(Ks\), and \(Alp\)) contribute to changes in HYMOD output.

# group by year and get mean
df_sim_by_yr_mean = Q_df.groupby(['year'])[sample_column_names].mean()

# group input data and get mean
df_obs_by_yr_mean = leaf_data.groupby(['year']).mean()

We can also calculate the sensitivity analysis indices for each individual year. This will allow us to understand if model control changes during different years. The following code first aggregates the outputs to annual time steps, and then calculates the SA indices.

# set up dataframes to store outputs
df_yr_s1 = pd.DataFrame(np.zeros((10, 5)), columns=['Kq', 'Ks', 'Alp', 'Huz', 'B'])
df_yr_delta = df_yr_s1.copy()

# iterate through each year
for i in range(0, 10):

    # generate the simulation data
    Y = df_sim_by_yr_mean.iloc[i, :].to_numpy()

    # run SA
    Si = delta.analyze(problem_hymod, param_values_hymod, Y, print_to_console=False)

    # add to output dataframes
    df_yr_s1.iloc[i, :] = np.maximum(Si['S1'], 0)
    df_yr_delta.iloc[i, :] = np.maximum(Si['delta'], 0)

# convert to arrays
arr_yr_s1 = df_mth_s1.values
arr_yr_delta = df_mth_delta.values

Tip

View the source code used to create this plot here: plot_annual_heatmap

# load previously ran data
arr_yr_delta, arr_yr_s1 = msdbook.load_hymod_annual_simulations()

# plot figure
ax, ax2 = msdbook.plot_annual_heatmap(arr_sim=arr_yr_s1.T,
                                      df_obs=df_obs_by_yr_mean,
                                      title='First Order - Mean Annual SA')
_images/hymod9.png

The first order sensitivities at the annual scale are not unlike the first order monthly sensitivities. Once again, sensitivities vary across year and Huz and B are the most consequential parameters.

# plot figure
ax, ax2 = msdbook.plot_annual_heatmap(arr_sim=arr_yr_delta.T,
                                      df_obs=df_obs_by_yr_mean,
                                      title='Total Order - Mean Annual SA and Observed flow')
_images/hymod10.png

Our results indicate that sensitivity analysis indices vary in different years and now that interactions are included, the Kq, Ks, and Alp variables impact the sensitivity of the streamflow output.

Although time-varying sensitivity analysis (TVSA) at average monthly and average annual temporal resolutions is informative, TVSA is susceptible to the aggregation issue that we discussed earlier in section 3-2. To avoid that we can further discretize our time domain to zoom into individual months. This will provide us with even more information about model behavior and the sensitivity of different parameters in different states of the system. The block of code demonstrates how to implement the monthly TVSA.

# set up dataframes to store outputs
df_vary_s1 = pd.DataFrame(np.zeros((df_obs_mth_mean.shape[0], 5)),
                          columns=['Kq', 'Ks', 'Alp', 'Huz', 'B'])

df_vary_delta = df_vary_s1.copy()

# iterate through each month
for i in range(0, df_obs_mth_mean.shape[0]):

    # generate the simulation data
    Y = df_sim_mth_mean.iloc[i, :].to_numpy()

    # run SA
    Si = delta.analyze(problem_hymod, param_values_hymod, Y, print_to_console=False)

    # add to output dataframes
    df_vary_s1.iloc[i, :] = np.maximum(Si['S1'], 0)
    df_vary_delta.iloc[i, :] = np.maximum(Si['delta'], 0)

# convert to arrays
arr_vary_s1 = df_vary_s1.values
arr_vary_delta = df_vary_delta.values

Tip

View the source code used to create this plot here: plot_varying_heatmap

# load in previously ran data
arr_vary_delta, arr_vary_s1 = msdbook.load_hymod_varying_simulations()

# plot figure
ax, ax2 = msdbook.plot_varying_heatmap(arr_sim=arr_vary_s1.T,
                                      df_obs=df_obs_mth_mean,
                                      title='First Order - Time-Varying SA')
_images/hymod11.png

Compared to the TVSA when streamflow was aggregated, this figure suggests that Kq is indeed a relevant parameter for influencing streamflow output when individual months are considered.

# plot figure
ax, ax2 = msdbook.plot_varying_heatmap(arr_sim=arr_vary_delta.T,
                                      df_obs=df_obs_mth_mean,
                                      title='Total Order - Time-Varying SA')
_images/hymod12.png

As above, the total order sensitivities further indicate the importance of Kq that is not apparent if aggregation is utilized.

B.4.4. Tips to Apply this methodology to your own problem#

In this tutorial, we demonstrated how to use global sensitivtiy analysis to explore a complex, non-linear model. We showed how measuring sensitivity across multiple measures of model performance and temporal aggregations yeilding differing results about model sensitivity/behavoir. While these results may seem contraditory, they provide useful insight into the behavoir of HYMOD. Would we expect the same parameters to control high flow and low flow regimes within the model? Maybe, depending on the system, but also, maybe not. This analysis can provide insight into how the model responds to its input parameters, allowing us to compare the results to our expectaions. This may allow us to find problems with our intial assumptions, or call attention to model features that can be improved or expanded upon. Depending on the model and context, it may also yield insight into the workings of the underlying system.

To run this tutorial on your own model you will need to:

  1. Design your experiment by choosing sampling bounds for your parameters and setting up the problem dictionary as in step 2-2

  2. Choose the parameters of interest

  3. Generate samples using the saltelli.sample function. This step is problem-dependent and note that the Sobol method can be computationally intensive depending on the model being analyzed. More complex models will be slower to run and will also require more samples to calculate accurate estimates of Sobol indices. Once you complete this process, pay attention to the confidence bounds on your sensitivity indices to see whether you need to run more samples.

  4. Run the parameter sets through your model and record each of the desired model outputs.

  5. Calculate the Sobol indices for each performance criteria. Now, the Y will be a numpy array with your external model output and you will need to include the parameter samples as an additional argument.

  6. Follow the procedure in step 2.6 to disaggregate performance across time

B.5. Time-evolving scenario discovery for infrastructure pathways#

Note

Run the tutorial interactively: Scenario Discovery Notebook.
Please be aware that notebooks can take a couple minutes to launch.
To run the notebooks yourself, download the files here and use these requirements.

B.5.1. Time-evolving scenario discovery for infrastructure pathways#

The purpose of this tutorial is to explore time-evolving vulnerability for systems that dynamically adapt to changing conditions. Using an example from water supply planning, we’ll first examine how performance of a dynamic infrastructure pathway policy changes over time, then use factor mapping (main text Chapter 4.3) to understand which combinations of uncertaities generate vulnerability for two water utilities. Next, we’ll perform factor prioritization (main text Chapter 4.3) to determine which uncertainties have the most influence on water supply performance. Finally, we’ll provide an open platform to explore vulnerability across multiple measures of performance and different combinations of uncertainties.

B.5.1.1. Background#

The Bedford-Greene metropolitan area (Figure 1) is a stylized water resources test case where two urban water utilities seek to develop an infrastructure and investment and management strategy to confront growing demands and changing climate. The utilities have agreed to jointly construct a new water treatment plant on Lake Classon, a large regional resource. Both utilities have also identified a set of individual infrastructure options to construct if necessary.

Figure 1

Fig. B.1 Figure 1#

The utilities are formulating a cooperative and adaptive regional management strategy that uses a risk-of-failure (ROF) metric to trigger both short term drought mitigation actions (water use restrictions and treated transfers between utilities) and long-term infrastructure investment decisions (shown in Figure 2a). Both utilities have specified a set of risk triggers and developed a construction order for available infrastructure options.

The utilities have run a Monte Carlo simulation to evaluate how these policies respond to a wide array of future States Of the World (SOWs). Each SOW represents a different combinations of thirteen uncertain system inputs including demand growth rates, changes to streamflows and financial variables. In this context, a fully specified SOW is composed of one sample of uncertain model inputs (e.g. one projection of demand growth rate coupled with one future streamflow scenario and one projection of future financial conditions). The water utilities used Latin Hypercube sampling (Chapter 3.3 of the main text) to develop an ensemble of 1,000 plausible future SOWs. The Monte Carlo simulation evaluates each candidate water supply infrastructure investment and management policy across all 1,000 SOWs, as shown in Figure 2b. For more details on the Monte Carlo sampling for this type of analysis, see Trindade et al., (2019).

The ROF-based policies respond to each SOW by generating a unique infrastructure pathway - a sequence of infrastructure investment decisions over time. Infrastructure pathways over a set of 1,000 future SOWs are shown in Figure 2c. Infrastructure options are arrayed along the vertical axis and the sequence of infrastructure investments triggered by the policy is plotted as pathways over time. Since the adaptive rule system generates a unique infrastructure sequence for each scenario, Figure 2c summarizes the ensemble of pathways by clustering SOWs according to infrastructure intensity. Dark green lines represent SOWs where the utilities heavily invest in new infrastructure, light green lines represent SOWs with low infrastructure investment and medium shaded lines represent moderate investment. The shading behind each pathway represents the frequency that each infrastructure option was triggered over time across sampled scenarios

Figure 2

Fig. B.2 Figure 2#

B.5.1.2. Evaluating Robustness over time#

The two water utilities are interested in mainting both supply reliability and financial stability across the broadest set of plausible future SOWs. To measure the performance of the infrastructure pathway policy, they’ve defined five critical performance criteria:

  • Reliability > 99%

  • Restriction Frequency < 20%

  • Peak Financial Cost < 80% of annual revenue (a measure of debt service spending)

  • Worst-case drought management cost < 10% of annual revenue (a measure of unexpected drought costs)

  • Unit Cost of Expansion < 5 dollars/kgal

To assess the robustness of the infrastructure pathway policy, the two utilities apply a satisficing metric, which measures the percentage of sampled SOWs where the pathway policy meets the peformance criteria:

\(R =\frac{1}{N}\sum_{j=1}^{N}\Lambda_{\theta,j}\)

Where, \(\Lambda\_{\theta,j}=\)

\[\begin{split}\begin{cases} 1, \quad \textrm{if}\ F(\theta)_{j}\leq \Phi_j \\ 0, \quad \textrm{otherwise} \end{cases}\end{split}\]

And \(\Phi\) is a vector of performance criteria for utility \(j\), \(\theta\) is the portfolio and \(N\) is the total number of sampled SOWs.

Below, we’ll visualize how robustness for the two utilities evolves over the 45-year planning horizon. We’ll assess robustness across three time periods, near-term (first 10 years), mid-term (22 years) and long term (45 years).

We start by loading robustness values for the both utilities. These values are calculated by applying the robustness metric above across 2,000 simulated SOWs. To make this exercise computationally tractable, we’ve precomputed these values, which can be found in the files “short_term_robustness.csv”, “mid_term_robustness.csv” and “long_term_robustness.csv”. These values are calculated using the function “check_rdm_meet_criteria” within the helper functions.

import numpy as np
from matplotlib import pyplot as plt
from functions.eBook_SD_helpers import check_rdm_meet_criteria, create_sd_input, plot_selected_tree_maps, get_factor_importances, open_exploration
import seaborn as sns

# load Deeply uncertain factors
rdm_factors = np.loadtxt('data/DU_Factors.csv', delimiter= ',')

sns.set()
short_term_robustness = np.loadtxt('data/short_term_robustness.csv', delimiter= ',')
mid_term_robustness = np.loadtxt('data/mid_term_robustness.csv', delimiter = ',')
long_term_robustness = np.loadtxt('data/long_term_robustness.csv', delimiter = ',')

# plot robustness over time
fig =plt.figure(figsize=(9,3))
plt.plot([10,22,45], [short_term_robustness[5]*100, mid_term_robustness[5]*100,long_term_robustness[5]*100], c='#B19CD9')
plt.plot([10, 22, 45], [short_term_robustness[11]*100, mid_term_robustness[11]*100, long_term_robustness[11]*100], c= '#43b284')
plt.scatter([10,22,45], [short_term_robustness[5]*100, mid_term_robustness[5]*100,long_term_robustness[5]*100], s=100, c='#B19CD9')
plt.scatter([10, 22, 45], [short_term_robustness[11]*100, mid_term_robustness[11]*100, long_term_robustness[11]*100], s=100, c='#43b284')
plt.xlabel('Time Horizon (yrs)')
plt.ylabel('Robustness (% SOWs)')
plt.legend(['Bedford', 'Greene'])
plt.title('Robustness Over Time')
plt.ylim([0, 107])
(0.0, 107.0)
_images/discovery_4_1.png

B.5.1.3. Exploring performance evolution#

The figure above reveals that the robustness of both water utilities degrades over time, with Bedford’s robustness declining further than Greene. This suggests that the proposed pathway policy is likely insufficient to meet the long-term needs of the two utilities. But how is the current policy insufficient? To answer that question we examine the performance measures that fail to meet performance criteria for each utility across the three planning horizons.

# Plot the type of vulnerability over time

### Bedford ###
plot_robustness_1 = np.zeros([3,5])
# Determine the percentage of failure SOWs that violate each criterion (note some SOWS fail multiple criteria, so this may some to >1)
criteria = ['Reliability', 'Restriction Frequency', 'Peak Financial Cost', 'Worst-case drought\nManagement Cost', 'Stranded Assets']
plot_robustness_1[0,:] = (1 - short_term_robustness[0:5])/(1-short_term_robustness[5])
plot_robustness_1[1,:] = (1 - mid_term_robustness[0:5])/(1-mid_term_robustness[5])
plot_robustness_1[2,:] = (1 - long_term_robustness[0:5])/(1-long_term_robustness[5])

# Plot over time
fig, axes = plt.subplots(nrows=1, ncols=3, figsize=(9,4))
axes[0].bar(np.arange(5), plot_robustness_1[0,:], color='#B19CD9')
axes[0].set_xticks(np.arange(5))
axes[0].set_xticklabels(criteria, rotation='vertical')
axes[0].set_ylim([0,1])
axes[0].set_title('10-year Horizon')
axes[0].set_ylabel('Fraction of failure SOWs')
axes[1].bar(np.arange(5), plot_robustness_1[1,:], color='#B19CD9')
axes[1].set_xticks(np.arange(5))
axes[1].set_xticklabels(criteria, rotation='vertical')
axes[1].set_ylim([0,1])
axes[1].set_title('22-year Horizon')
axes[2].bar(np.arange(5), plot_robustness_1[2,:], color='#B19CD9')
axes[2].set_xticks(np.arange(5))
axes[2].set_xticklabels(criteria, rotation='vertical')
axes[2].set_title('45-year Horizon')
axes[2].set_ylim([0,1])
fig.suptitle('Bedford')
plt.tight_layout()

### Greene ###
# Determine the percentage of failure SOWs that violate each criterion (note some SOWS fail multiple criteria, so this may some to >1)
plot_robustness_2 = np.zeros([3, 5])
plot_robustness_2[0, :] = (1 - short_term_robustness[6:11]) / (1 - short_term_robustness[11])
plot_robustness_2[1, :] = (1 - mid_term_robustness[6:11]) / (1 - mid_term_robustness[11])
plot_robustness_2[2, :] = (1 - long_term_robustness[6:11]) / (1 - long_term_robustness[11])

fig, axes = plt.subplots(nrows=1, ncols=3, figsize=(9, 4))
axes[0].bar(np.arange(5), plot_robustness_2[0, :], color='#43b284')
axes[0].set_xticks(np.arange(5))
axes[0].set_xticklabels(criteria, rotation='vertical')
axes[0].set_title('10-year Horizon')
axes[0].set_ylim([0,1])
axes[0].set_ylabel('Fraction of failure SOWs')
axes[1].bar(np.arange(5), plot_robustness_2[1, :], color='#43b284')
axes[1].set_xticks(np.arange(5))
axes[1].set_xticklabels(criteria, rotation='vertical')
axes[1].set_title('22-year Horizon')
axes[1].set_ylim([0,1])
axes[2].bar(np.arange(5), plot_robustness_2[2, :], color='#43b284')
axes[2].set_xticks(np.arange(5))
axes[2].set_xticklabels(criteria, rotation='vertical')
axes[2].set_title('45-year Horizon')
axes[2].set_ylim([0,1])
fig.suptitle('Greene')
plt.tight_layout()
_images/discovery_6_0.png _images/discovery_6_1.png

In the figures above, we observe that the vulnerability of both utilities changes in different ways. Early in the simulation period, Bedford is vulnerable to failures in reliability (though the robustness figure created in step B5.2 reveals that these failures are very rare). As the simulation period progresses, Bedford’s vulnerability expands to include failures in restriction frequency and worst-case cost. These failures indicate that the utility has an overall inability to manage drought conditions and future conditions progress.

Greene shows a very different evolution in vulnerability. Early in the simulation period, failures manifest in the restriction frequency objective, suggesting that the utility must rely on water use restrictions to maintain supply reliability. As the simulation progresses however, the vulnerability evolves. When evaluated across the 45-year planning horizon, a new failure modes emerges - financial failure manifesting in peak financial cost and stranded assets. This suggests that the proposed pathway policy may be over-investing in new infrastructure, straining the utility’s budget with large debt payments that are unnecessary to maintain supply reliability.

B.5.1.4. How do deep uncertainties generate vulnerability#

While the evolution of robustness provides insight into how the system evolves over time, it does not reveal why each utility is vulnerable. To examine how deep uncertainties generate vulnerability over time for the two utilities, we perform scenario discovery (factor mapping, Chapter 4.3). Here we’ll utilize gradient boosted trees to identify regions of the uncertainty space that cause the utilities to fail to meet performance criteria.

# import the performance data across 2000 SOWs for three time periods
short_term_performance = np.loadtxt('data/short_term_performance.csv', delimiter= ',')
mid_term_performance = np.loadtxt('data/mid_term_performance.csv', delimiter = ',')
long_term_performance = np.loadtxt('data/long_term_performance.csv', delimiter = ',')

satisficing_criteria = [.98, .2, .8, .1, 5]

# transform into scenario discovery input
short_term_SD_input = create_sd_input(short_term_performance, satisficing_criteria)
mid_term_SD_input = create_sd_input(mid_term_performance, satisficing_criteria)
long_term_SD_input = create_sd_input(long_term_performance, satisficing_criteria)

# factor mapping Bedford
fig, axes = plt.subplots(nrows=1, ncols=3, figsize=(9,3))
plot_selected_tree_maps(5, 'short_term', 0, 6, satisficing_criteria, 0, axes[0])
axes[0].set_title('10-year Horizon')
plot_selected_tree_maps(5, 'mid_term', 0, 6, satisficing_criteria, 0, axes[1])
axes[1].set_title('22-year Horizon')
plot_selected_tree_maps(5, 'long_term', 0, 1, satisficing_criteria, 0, axes[2])
axes[2].set_title('45-year Horizon')
fig.suptitle('Bedford Factor Maps')
plt.tight_layout()

# factor mapping Greene
fig, axes = plt.subplots(nrows=1, ncols=3, figsize=(9,3))
plot_selected_tree_maps(11, 'short_term', 0, 8, satisficing_criteria, 0, axes[0])
axes[0].set_title('10-year Horizon')
plot_selected_tree_maps(11, 'mid_term', 0, 6, satisficing_criteria, 0, axes[1])
axes[1].set_title('22-year Horizon')
plot_selected_tree_maps(11, 'long_term', 0, 1, satisficing_criteria, 0, axes[2])
axes[2].set_title('45-year Horizon')
fig.suptitle('Greene Factor Maps')
plt.tight_layout()
Factor map for Bedford
Factor map for Bedford
Factor map for Bedford
Factor map for Greene
Factor map for Greene
Factor map for Greene
_images/discovery_9_1.png _images/discovery_9_2.png

In the figures above, we learn more about how the vulnerability of the two utilities evolves over time. Bedford begins with very few possible failures but appears vulnerable to high demand growth scenarios under future scenarios with high demands. When evaluated across a 22-year planning horizon, Bedford is vulnerable when the near-term demand growth is high and water use restrictions are less effective than predicted. Under the full 45-year planning horizon, Bedford is vulnerable to sustained high levels of demand growth, failing if either near-term or mid-term demand growth exceeds expected levels.

Greene’s vulnerability evolves differently. It begins with vulnerability to high demand growth, but as the simulation progresses (and infrastructure is constructed), the utility becomes vulnerable to low-demand growth futures which cause the failures in financial criteria shown in section B.5.3. This indicates that the pathway policy over-builds in many SOWs, and becomes financially unstable if demand does not grow sufficiently to provide revenue to cover debt service payments.

B.5.1.5. Which uncertainties have the most influence on time-evolving performance?#

The factor maps generated in B.5.4 present the vulnerability generated by the two most important deep uncertainties as determined by Gradient Boosted Trees. Yet the factor prioritization shows that more than two uncertainties are influential to regional performance. Further, we can observe that individual uncertainties have different impacts on each performance obejctive, and these impacts may change over time. In the cells below, explore the impact of deep uncertainty by generating factor maps for different combinations of deep uncertain factors, objectives and time horizons.

sns.set_style('white')
uncertainties = ['D1', 'D2', 'D3', 'BT', 'BM', 'DR', 'RE', 'EV', 'PM', 'CT', 'IA', 'IF', 'IP']
uncertainties = ['Near-term demand', 'Mid-term demand', 'Long-term demand', 'Bond Term', 'Bond Rate', 'Discount Rate', 'Restriction Effectiveness', 'Evaporation Rate', 'Permitting time', 'Construction time', 'Inflow Amplitude', 'Inflow Frequency', 'Inflow Period']

u1_st_FI = get_factor_importances(short_term_SD_input, rdm_factors, 250, 4, 5)
u1_mt_FI = get_factor_importances(mid_term_SD_input, rdm_factors, 250, 4, 5)
u1_lt_FI = get_factor_importances(long_term_SD_input, rdm_factors, 250, 4, 5)

u1_all = np.vstack([u1_st_FI,u1_mt_FI, u1_lt_FI])
u1_all = np.transpose(u1_all)

# factor ranking -- utility 2
u2_st_FI = get_factor_importances(short_term_SD_input, rdm_factors, 250, 4, 11)
u2_mt_FI = get_factor_importances(mid_term_SD_input, rdm_factors, 250, 4, 11)
u2_lt_FI = get_factor_importances(long_term_SD_input, rdm_factors, 250, 4, 11)
u2_all = np.vstack([u2_st_FI,u2_mt_FI, u2_lt_FI])
u2_all = np.transpose(u2_all)

fig, (ax, ax2, cax) = plt.subplots(ncols=3,figsize=(5,5),
                  gridspec_kw={"width_ratios":[1,1, 0.1]})
fig.subplots_adjust(wspace=0.3)
im = ax.imshow(u1_all, cmap='Reds', vmin=0, vmax=.3)
ax.set_yticks(np.arange(13))
ax.set_yticklabels(uncertainties)
ax.set_xticks(np.arange(3))
ax.set_xlabel('Time Horizon')
ax.set_title('Bedford')

im1 = ax2.imshow(u2_all, cmap='Reds', vmin=0, vmax=.3)
ax2.set_yticks(np.arange(13))
ax2.set_yticklabels([])
ax2.set_xticks(np.arange(3))
ax2.set_xlabel('Time Horizon')
ax2.set_title('Greene')
fig.colorbar(im, cax=cax, label='Factor Importance')
plt.tight_layout()
_images/discovery_12_0.png

The Figure above shows the factor importance as determined by gradient boosted trees for both utilities across the three planning horizons. While near-term demand growth is important for both utilities under all three planning horizons, the importance of other factors evolves over time. For example, restriction effectiveness plays an important role for Greene under the 22-year planning horizon but disappears under the 45-year planning horizon. In contrast, the bond interest rate is important for predicting success over the 45-year planning horizon, but does not appear important over the 10- or 22-year planning horizons. These findings highlight how assumptions about the planning period can have a large impact on modeling outcomes.

B.5.1.6. Open exploration#

In the cell below, use the function to explore how factor maps change for the two utilities based upon the uncertainties plotted, the objectives of interest and the time horizon.

# specify the utility ("Bedford" or "Greene")
utility = "Bedford"

# specify which performance objectives to investigate (note that not all performance objectives have failures, which may result in a blank factor map)
# set this to one of the following: "Reliability", "Restriction Frequency", "Peak Financial Cost", "Worst Case Cost" or "Unit Cost"
objective = "Reliability"

# select uncertainties from the following list: 'D1', 'D2', 'D3', 'BT', 'BM', 'DR', 'RE', 'EV', 'PM', 'CT', 'IA', 'IF', 'IP'
uncertainty_1 = 'D1'
uncertainty_2 = 'D2'

# The code below will plot factor maps over the three planning horizons for the information above
fig, axes = plt.subplots(nrows=1, ncols=3, figsize=(9,3))
open_exploration(utility, objective, 'short_term', uncertainty_1, uncertainty_2, axes[0])
open_exploration(utility, objective, 'mid_term', uncertainty_1, uncertainty_2, axes[1])
open_exploration(utility, objective, 'long_term', uncertainty_1, uncertainty_2, axes[2])
plt.tight_layout()
Factor map for Bedford, reliability
Factor map for Bedford, reliability
Factor map for Bedford, reliability
_images/discovery_16_1.png

B.5.1.7. Tips to apply this methodology to your own problem#

In this tutorial, we demonstrated time-evolving scenario discovery for a cooperative water supply system. To apply this workflow to your own problem:

  1. Choose sampling bounds for your parameters of interest, which will represent uncertainties that characterize your system.

  2. Generate samples for these parameters (this can be done using the saltelli.sample function as in B.2 or done with another package).

  3. Define performance criteria for your problem

  4. Evaluate parameter sets through your model, and save performance measures across multiple time horizons

  5. Draw from the supporting code for this tutorial to perform scneario discovery and visualize results

B.5.1.8. References#

Trindade, B. C., Reed, P. M., & Characklis, G. W. (2019). Deeply uncertain pathways: Integrated multi-city regional water supply infrastructure investment and portfolio management. Advances in Water Resources, 134, 103442.

B.6. A Hidden-Markov Modeling Approach to Creating Synthetic Streamflow Scenarios Tutorial#

Note

Run the tutorial interactively: HMM Notebook.
Please be aware that notebooks can take a couple minutes to launch.
To run the notebooks yourself, download the files here and use these requirements.

B.6.1. A Hidden-Markov Modeling Approach to Creating Synthetic Streamflow Scenarios#

In this notebook, we will be covering the basics of fitting a Hidden Markov Model-based synthetic streamflow generator for a single site in the Upper Colorado River Basin. First, we will characterize the observed historical flow in the basin from 1909-2013. Then, we will fit a synthetic streamflow generator to the observed flows in the basin in order to create stationary synthetic flows. Finally, we will create a non-stationary version of the generator to create flows that could be representative of plausible future climate in the region. We ultimately show how to place the synthetically generated flows in the context of physically-informed CMIP5 projections to compare the two methods.

B.6.1.1. Background#

In the Western United States (US), and particularly the Colorado River Basin, a recent study used tree-ring reconstructions to suggest that the megadrought that has been occurring in the Southwest over the past 22 years is the region’s worst drought since about 800 AD (Williams et al., 2022). The study’s lead author, UCLA climatologist Park Williams, suggested that had the sequence of wet-dry years occurred without anthropogenic forcing, the 2000s would have likely still been dry, but not on the same level as the worst of the last millennium’s megadroughts.

The recent trend of warming and reduced soil moisture in the Southwest US is highly challenging from a water systems planning and management perspective for the Colorado River Basin. Given the wide recognition that the river is over-allocated, the most recent drought highlights the difficulty of sustaining the flow requirements as dictated by the Colorado Compact. Thus, there has been an increasing focus in exploratory modeling efforts to clarify how vulnerable water systems in this region are to plausible drought streamflow scenarios for the future. In this tutorial, we’ll discuss how to create these scenarios using a Hidden Markov Model (HMM)- based streamflow synthetic generator. As discussed in Section 2.1 and 4.2 of the eBook, future climate conditions in the basin represent a deep uncertainty that can lead to highly consequential water scarcity outcomes. It is advantageous to create a model such as the HMM-based generator in order to facilitate the creation of many ensembles of streamflow that can ultimately be used to force regional water systems models to understand how variability and drought extremes affect regional water shortages, operations, and policies.

Lake Powell shows persistent effects from drought (Source: U.S. Bureau of Reclamation)

B.6.2. Let’s Get Started!#

B.6.2.1. Observed Record#

First, let’s take a look at the observed data from 1909-2013 for a specific site. In this example, we use the outlet gauge of the Upper Colorado River (USGS Gauge 09163500 at the Colorado-Utah state line). Below, we create a plot of the annual streamflow.

# Import libraries
import matplotlib as mpl
import matplotlib.pyplot as plt
import matplotlib.patches as patches
import numpy as np
import pandas as pd
from random import random
from SALib.sample import latin
from scipy import stats as ss
import statistics
import statsmodels.api as sm


# Import helper functions from local package
from functions import fitmodel
from functions import plotstates
from functions import plotdist
# Read in annual historical data
AnnualQ = pd.read_csv('data/uc_historical.csv')
AnnualQ['Year'] = list(range(1909, 2014))

# Plot a line graph
fig, ax = plt.subplots(figsize=(12, 8))
ax.plot(AnnualQ.iloc[:, 1],
        AnnualQ.iloc[:, 0],
        color='#005F73',
        label='Annual')

# Add labels and title
ax.set_title("Upper Colorado Annual Flow")
ax.set_xlabel("Year", fontsize=16)
ax.set_ylabel("Annual Flow (cubic feet per year)", fontsize=16)
plt.xticks(fontsize=12)
plt.yticks(fontsize=12)
mpl.rc('legend', fontsize=16)
legend = plt.legend(loc="upper right")
plt.show()
plt.close()
_images/hmm_9_0.png

Let’s calculate an 11-year rolling mean of the same data to get a sense of long-term trends.

fig, ax = plt.subplots(figsize=(12, 8))

# Plot the original line graph
plt.plot(AnnualQ.iloc[:,1],
         AnnualQ.iloc[:,0],
         color='#005F73',
         label='Annual')

# Plot an 11-year rolling mean
plt.plot(AnnualQ.iloc[:, 1].rolling(11).mean(),
         AnnualQ.iloc[:, 0].rolling(11).mean(),
         color='#183A2E',
         label='11-Year Rolling Mean')

# Add labels and title
plt.title("Upper Colorado Annual Flow")
ax.set_xlabel("Year",fontsize=16)
ax.set_ylabel("Annual Flow (cubic feet per year)", fontsize=16)
plt.xticks(fontsize=12)
plt.yticks(fontsize=12)
mpl.rc('legend', fontsize=16)
legend = plt.legend()
plt.show()
plt.close()
_images/hmm_11_0.png

The Colorado Compact, which prescribes flows between the Upper and Lower Colorado Basins, was negotiated using data prior to 1922, a time period revealed by the above figure to be one of the consistently wetter periods on record. It’s clear today that since the 1980s, the Southwest US has been experiencing aridification (Overpeck et al., 2020) and that this observed record alone isn’t an accurate representation of what future climate might look like in this region.

Let’s get a little more specific and formally quantify decadal droughts that have occurred in the observed period. We use a metric proposed in Ault et al. (2014). The authors define a decadal drought as when the 11-year rolling mean falls below a threshold that is 1/2 a standard deviation below the overall mean of the record. We can then highlight the block of years that fall in a decadal drought using yellow rectangles below.

# Define drought threshold
std = statistics.stdev(AnnualQ.iloc[:, 0])
threshold = np.mean(AnnualQ.iloc[:, 0] - (0.5 * std))

# Find where the rolling mean dip below the threshold?
drought_instances = [i for i, v in enumerate(AnnualQ.iloc[:,0].rolling(11).mean()) if v < threshold]
drought_years = AnnualQ.iloc[:, 1].rolling(11).mean()[drought_instances]

# Add labels and title
fig, ax = plt.subplots(figsize=(12, 8))
ax.plot(AnnualQ.iloc[:,1],
        AnnualQ.iloc[:,0],
        color='#005F73',
        label='Annual')

ax.plot(AnnualQ.iloc[:,1].rolling(11,center=True).mean(),
        AnnualQ.iloc[:,0].rolling(11,center=True).mean(),
        color='#183A2E',
        label='11-Year Rolling Mean')

ax.axhline(y=threshold,
           color='black',
           linestyle='--',
           label='Drought Threshold')

# Visualize the drought periods as yellow rectangles
for i in drought_years:

    # Plot a box centered around those values and with 5 years on either side.
    rect = patches.Rectangle((i-5,0), 11,2e7, linewidth=1, edgecolor='#EFE2BE', facecolor='#EFE2BE')

    # Add the patch to the Axes
    ax.add_patch(rect)


plt.title("Upper Colorado Annual Flow")
ax.set_xlabel("Year", fontsize=16)
ax.set_ylabel("Annual Flow (cubic feet per year)", fontsize=16)
plt.xticks(fontsize=12)
plt.yticks(fontsize=12)
mpl.rc('legend', fontsize=16)
legend = plt.legend()
plt.show()
plt.close()
_images/hmm_14_0.png

By this metric, the Upper Colorado Basin region has experienced two decadal droughts over the last century.

B.6.2.2. Synthetic Stationary Generator to Better Quantify Natural Variability#

It is important to remember that the streamflow that we have observed in the region over the last century is only one instance of the hydrology that could occur since the atmosphere is an inherently stochastic system. Thus, we require a tool that will allow us to see multiple plausible realizations of the streamflow record to understand the internal variability that characterizes the historical period. One observed realization of historical streamflow is limited in its ability to capture rare extremes; plausible (but not observed) alternative instances of streamflow records can help to fill this gap. The tool that we use to develop synthetic flows for the region is a Gaussian Hidden Markov Model (HMM). If a system follows a Markov process, it switches between a number of “hidden states” dictated by a transition matrix. Each state has its own Gaussian probability distribution (defined by a mean and standard deviation) and one can draw from this distribution to create synthetic flows that fit the properties of the historical distribution. HMMs are an attractive choice for this region because they can simulate persistence (i.e., long duration droughts), which is a characteristic of the region’s hydro-climatology. The figure below shows an example of a 2-state Gaussian HMM that we will be fitting for this example.

Two-state Gaussian HMM with mean and standard deviation parameters

Below is the code that fits the HMM model to the last 2/3 of the historical record of log annual flows at the CO-UT stateline gauge and creates an alternative trace of 105 years. A subset of the dataset is chosen in order to minimize overfitting and to retain a set of data for validation of the model. When we fit our model, we utilize the Baum-Welch algorithm (a special version of the expectation-maximization algorithm) to find the optimal parameters that maximize the likelihood of seeing the observed flows. Ultimately, the algorithm will return a mean and standard deviation associated with each state (mus and sigmas defined below) and a 2x2 transition probability matrix that captures the likelihood of transitioning between states (P). We can also retrieve the annual hidden states across the observed series, also known as the Viterbi sequence of states, which classifies each year in a “wet” or “dry” state.

# Number of years for alternative trace
n_years = 105

# Import historical data that it used to fit HMM model
AnnualQ_h = pd.read_csv('data/uc_historical.csv')

# Fit the model and pull out relevant parameters and samples
logQ = np.log(AnnualQ_h)
hidden_states, mus, sigmas, P, logProb, samples, model = fitmodel.fitHMM(logQ, n_years)

We’ve fit our HMM, but what does the model look like? Let’s plot the annual time series of hidden states, or the Viterbi sequence. In the code, above, we have defined that the drier state is always represented by state 0. Thus, we know that hidden_states = 0 corresponds to the dry state and hidden_states = 1 to the wet state.

# Plot Vitebi sequence
plotstates.plotTimeSeries(np.log(AnnualQ.iloc[:,0]), hidden_states, 'Annual Flow (cube feet per year)')
_images/hmm_21_0.png

In the figure above, we see that the years with the higher log flows tend to be classified in a “wet” state and the opposite is true of the “dry” state. We can also print the transition matrix, which shows the likelihood of transitioning between states. Note that the system has a high likelihood of persisting in the same state.

print(model.transmat_)
[[0.65095026 0.34904974]
 [0.3205531  0.6794469 ]]

Let’s also plot the distribution of log annual flows associated with the wet and dry states.

# Plot wet and dry state distributions
plotdist.plotDistribution(logQ, mus, sigmas, P)
_images/hmm_25_0.png

The wet state distribution is characterized by a greater mean flow, but note that there is significant overlap in the tails of the distributions below which demonstrates why years with similiar flows can be classified in different states.

Now let’s see what the drought dynamics look like in the synthetic scenario that we created using the same definition that we had used for the historical period.

# Retrieve samples and back-transform out of log space
AnnualQ_s = np.exp(samples[0])
AnnualQ_s = pd.DataFrame(AnnualQ_s)
AnnualQ_s['Year'] = list(range(1909, 2014))

# Define drought threshold
std=statistics.stdev(AnnualQ_s.iloc[:, 0])
threshold=np.mean(AnnualQ_s.iloc[:, 0] - (0.5 * std))

# Where does the rolling mean dip below the threshold
drought_instances = [i for i,v in enumerate(AnnualQ_s.iloc[:, 0].rolling(11).mean()) if v < threshold]
drought_years = AnnualQ_s.iloc[:, 1].rolling(11).mean()[drought_instances]

#Visualize the streamflow scenario
fig, ax = plt.subplots(figsize=(12, 8))

#Plot the original line graph
ax.plot(AnnualQ_s.iloc[:,1],
        AnnualQ_s.iloc[:,0],
        color='#005F73',
        label='Annual')

#Plot a 11-year rolling mean
ax.plot(AnnualQ_s.iloc[:,1],
        AnnualQ_s.iloc[:,0].rolling(11, center=True).mean(),
        color='#183A2E',
        label='11-Year Rolling Mean')

# Add labels and title
ax.axhline(y=threshold,
           color='black',
           linestyle='--',
           label='Drought Threshold')


for i in drought_years:

    #Plot a box centered around those values and with 5 years on either side.
    rect = patches.Rectangle((i - 5,
                              0),
                              11,
                              2e7,
                              linewidth=1,
                              edgecolor='#EFE2BE',
                              facecolor='#EFE2BE')

    # Add the patch to the Axes
    ax.add_patch(rect)


plt.title("Upper Colorado Annual Flow (Synthetic Stationary)",fontsize=16)
plt.xlabel("Year", fontsize=16)
plt.ylabel("Annual Flow (cubic feet per year)", fontsize=16)
mpl.rc('legend', fontsize=16)
plt.legend()
plt.xticks(fontsize=12)
plt.yticks(fontsize=12)
plt.show()
plt.close()
_images/hmm_28_0.png

You can sample from the model and create more 105-year traces and note how the location and number of decadal droughts changes. This demonstrates how different the historical record can look just within the range of natural variability. It’s also important to remember that when droughts occur can also define the ultimate effect of the drought (i.e. is it a time when there is a large population growth or a time when humans can adapt by conserving or building more infrastructure?). A hydrologic drought need not manifest into an agricultural or operational drought of the same magnitude if stored surface water is available.

We externally run the HMM many times to create a dataset of 100 instances of the 105-year traces and 1000 instances of the 105-year traces that are available in the package (“synthetic_stationary_small_sample_100.csv”,“synthetic_stationary_large_sample_1000”). The shaded green lines correspond to the flow duration curves (FDCs) for the generated streamflow traces in comparison with the FDC of the historical record in beige.

Generated streamflow traces in comparison with the FDC of the historical record.

As expected, the stationary synthetic FDCs envelope the historical FDC and particularly, the synthetic traces offer many more instances of low flow conditions that could lead to more extreme drought conditions than what has been observed historically. It is also useful to check for convergence of samples and to determine how many samples are needed to fully represent internal variability. Above we see that the extension to 1000 instances of 105-year traces fills out regions of the FDC, including creating some more extreme drought conditions, but that additional samples will likely not fill out the FDC substantially more.

B.6.2.3. Non-Stationary Synthetic Generator to Impose Climate Changes#

Now, we create flows under non-stationary conditions to get a better understanding of what flows can look like under climate changes. In order to create flows under non-stationary conditions, we can toggle the parameters of the HMM model in order to create systematic changes to the model that can represent a changing climate. The HMM has 6 parameters that define it. When we fit the historical model, the parameters that are fit represent a baseline parameter value. In this non-stationary generator, we define a range to sample these parameters from.

Parameter

Current Value

Lower Bound

Upper Bound

Log-Space Wet State Mean Multiplier

1.00

0.98

1.02

Log-Space Dry State Mean Multiplier

1.00

0.98

1.02

Log-Space Wet State Standard Deviation Multiplier

1.00

0.75

1.25

Log-Space Dry State Standard Deviation Multiplier

1.00

0.75

1.25

Change in Dry-Dry Transition Probability

0.00

-0.30

+0.30

Change in Wet-Wet Transition Probability

0.00

-0.30

+0.30

Now let’s sample 1000 times from these bounds to create 1000 new parameterizations of the model. Here we use SALib and the Latin Hypercube sample function.

# Create problem structure with parameters that we want to sample
problem = {
    'num_vars': 6,
    'names': ['wet_mu', 'dry_mu', 'wet_std','dry_std','dry_tp',"wet_tp"],
    'bounds': [[0.98, 1.02],
               [0.98, 1.02],
               [0.75,1.25],
               [0.75,1.25],
               [-0.3,0.3],
               [-0.3,0.3]]
}

# generate 1000 parameterizations
n_samples = 1000

# set random seed for reproducibility
seed_value = 123

# Generate our samples
LHsamples = latin.sample(problem, n_samples, seed_value)

Now let’s look at what some of the traces look like in our non-stationary generator. Let’s choose a random instance from the 1000-member space and adjust the parameters accordingly.

# Define static parameters
n_years = 105

# Sample parameter; Adjust to any sample number from 0-999
sample = 215

# Create empty arrays to store the new Gaussian HMM parameters for each SOW
Pnew = np.empty([2,2])
piNew = np.empty([2])
musNew_HMM = np.empty([2])
sigmasNew_HMM = np.empty([2])
logAnnualQ_s = np.empty([n_years])

# Calculate new transition matrix and stationary distribution of SOW at last node as well as new means and standard deviations
Pnew[0, 0] = max(0.0, min(1.0, P[0, 0] + LHsamples[sample][4]))
Pnew[1, 1] = max(0.0, min(1.0, P[1, 1] + LHsamples[sample][5]))
Pnew[0, 1] = 1 - Pnew[0, 0]
Pnew[1, 0] = 1 - Pnew[1, 1]
eigenvals, eigenvecs = np.linalg.eig(np.transpose(Pnew))
one_eigval = np.argmin(np.abs(eigenvals - 1))
piNew = np.divide(np.dot(np.transpose(Pnew), eigenvecs[:, one_eigval]),
                  np.sum(np.dot(np.transpose(Pnew), eigenvecs[:,one_eigval])))

musNew_HMM[0] = mus[0] * LHsamples[sample][1]
musNew_HMM[1] = mus[1] * LHsamples[sample][0]
sigmasNew_HMM[0] = sigmas[0] * LHsamples[sample][3]
sigmasNew_HMM[1] = sigmas[1] * LHsamples[sample][2]

# Generate first state and log-space annual flow at last node
states = np.empty([n_years])
if random() <= piNew[0]:
    states[0] = 0
    logAnnualQ_s[0] = ss.norm.rvs(musNew_HMM[0], sigmasNew_HMM[0])
else:
    states[0] = 1
    logAnnualQ_s[0] = ss.norm.rvs(musNew_HMM[1], sigmasNew_HMM[1])

# Generate remaining state trajectory and log space flows at last node
for j in range(1, n_years):
    if random() <= Pnew[int(states[j-1]), int(states[j-1])]:
        states[j] = states[j-1]
    else:
        states[j] = 1 - states[j-1]

    if states[j] == 0:
        logAnnualQ_s[j] = ss.norm.rvs(musNew_HMM[0], sigmasNew_HMM[0])
    else:
        logAnnualQ_s[j] = ss.norm.rvs(musNew_HMM[1], sigmasNew_HMM[1])

# Convert log-space flows to real-space flows
AnnualQ_s = np.exp(logAnnualQ_s)-1

Now let’s see what this synthetic trace looks like.

# Retrieve samples and back-transform out of log space
AnnualQ_s = pd.DataFrame(AnnualQ_s)
AnnualQ_s['Year'] = list(range(1909, 2014))

# Define drought threshold
std = statistics.stdev(AnnualQ_s.iloc[:, 0])
threshold = np.mean(AnnualQ_s.iloc[:, 0] - (0.5 * std))

# Where does the rolling mean dip below the threshold
drought_instances = [i for i, v in enumerate(AnnualQ_s.iloc[:, 0].rolling(11).mean()) if v < threshold]
drought_years = AnnualQ_s.iloc[:, 1].rolling(11).mean()[drought_instances]

# Visualize the streamflow scenario
fig, ax = plt.subplots(figsize=(12, 8))

# Plot the original line graph
ax.plot(AnnualQ_s.iloc[:,1],
        AnnualQ_s.iloc[:,0],
        color='#005F73',
        label='Annual')

# Plot a 11-year rolling mean
ax.plot(AnnualQ_s.iloc[:, 1],
        AnnualQ_s.iloc[:, 0].rolling(11, center=True).mean(),
        color='#183A2E',
        label='11-Year Rolling Mean')

# Add labels and title
ax.axhline(y=threshold,
           color='black',
           linestyle='--',
           label='Drought Threshold')


for i in drought_years:

    # Plot a box centered around those values and with 5 years on either side.
    rect = patches.Rectangle((i - 5,0),
                             11,
                             2e7,
                             linewidth=1,
                             edgecolor='#EFE2BE',
                             facecolor='#EFE2BE')

    # Add the patch to the Axes
    ax.add_patch(rect)


plt.title("Annual Flow (Synthetic Non-Stationary)", fontsize=16)
plt.xlabel("Year", fontsize=16)
plt.ylabel("Annual Flow (cubic feet per year)", fontsize=16)
plt.xticks(fontsize=12)
plt.yticks(fontsize=12)
mpl.rc('legend', fontsize=16)
legend = plt.legend(loc="upper right")
plt.show()
plt.close()
_images/hmm_40_0.png

Above is the example trace from the new non-stationary model. You may see fewer or more decadal drought instances. We can further summarize overall decadal drought characteristics across the samples. Let’s plot a histogram of the total number of times we go below the drought threshold across these realizations.

decadal_drought_occurence=np.empty([1000])

for y in range(1000):

    # Create empty arrays to store the new Gaussian HMM parameters for each SOW
    Pnew = np.empty([2, 2])
    piNew = np.empty([2])
    musNew_HMM = np.empty([2])
    sigmasNew_HMM = np.empty([2])
    logAnnualQ_s = np.empty([n_years])

    # Calculate new transition matrix and stationary distribution of SOW at last node
    # as well as new means and standard deviations

    Pnew[0, 0] = max(0.0,min(1.0, P[0, 0] + LHsamples[y][4]))
    Pnew[1, 1] = max(0.0,min(1.0, P[1, 1] + LHsamples[y][5]))
    Pnew[0, 1] = 1 - Pnew[0, 0]
    Pnew[1, 0] = 1 - Pnew[1, 1]
    eigenvals, eigenvecs = np.linalg.eig(np.transpose(Pnew))
    one_eigval = np.argmin(np.abs(eigenvals - 1))
    piNew = np.divide(np.dot(np.transpose(Pnew), eigenvecs[:, one_eigval]),
                      np.sum(np.dot(np.transpose(Pnew), eigenvecs[:, one_eigval])))

    musNew_HMM[0] = mus[0] * LHsamples[y][1]
    musNew_HMM[1] = mus[1] * LHsamples[y][0]
    sigmasNew_HMM[0] = sigmas[0] * LHsamples[y][3]
    sigmasNew_HMM[1] = sigmas[1] * LHsamples[y][2]

    # Generate first state and log-space annual flow at last node
    states = np.empty([n_years])
    if random() <= piNew[0]:
        states[0] = 0
        logAnnualQ_s[0] = ss.norm.rvs(musNew_HMM[0], sigmasNew_HMM[0])
    else:
        states[0] = 1
        logAnnualQ_s[0] = ss.norm.rvs(musNew_HMM[1], sigmasNew_HMM[1])

    # generate remaining state trajectory and log space flows at last node
    for j in range(1, n_years):
        if random() <= Pnew[int(states[j-1]), int(states[j-1])]:
            states[j] = states[j-1]
        else:
            states[j] = 1 - states[j-1]

        if states[j] == 0:
            logAnnualQ_s[j] = ss.norm.rvs(musNew_HMM[0], sigmasNew_HMM[0])
        else:
            logAnnualQ_s[j] = ss.norm.rvs(musNew_HMM[1], sigmasNew_HMM[1])

    # Convert log-space flows to real-space flows
    AnnualQ_s = np.exp(logAnnualQ_s) - 1
    AnnualQ_s = pd.DataFrame(AnnualQ_s)
    AnnualQ_s['Year'] = list(range(1909, 2014))

    # Define drought threshold
    std = statistics.stdev(AnnualQ_s.iloc[:, 0])
    threshold = np.mean(AnnualQ_s.iloc[:, 0] - (0.5 * std))

    # Where does the rolling mean dip below the threshold
    drought_instances = [i for i, v in enumerate(AnnualQ_s.iloc[:, 0].rolling(11).mean()) if v < threshold]
    decadal_drought_occurence[y] = len(drought_instances)
fig, ax = plt.subplots(figsize=(12, 8))
ax.hist(decadal_drought_occurence,label='Non-Stationary generator',color="#005F73")
ax.set_xlabel('Number of Instances of Decadal Drought',fontsize=16)
ax.set_ylabel('Frequency',fontsize=16)
ax.axvline(x=2, color='r', linestyle='-',label='Observed')
mpl.rc('legend', fontsize = 16)
plt.xticks(fontsize = 12)
plt.yticks(fontsize = 12)
plt.show()
plt.close()
_images/hmm_43_0.png

Note how many more instances of the decadal droughts we are creating with the non-stationary generator than our observed 105-year trace which creates a rich space in which we can test our models. Just as we did with the stationary generator, we can externally run the non-stationary generator to create 10,000 instances of the 105-year traces that are available in the package (“synthetic_nonstationary_large_sample_10000.csv”). The shaded green and blue lines correspond to the FDCs for the stationary and non-stationary generated streamflow traces in comparison with the FDC of the historical record in beige. Note how the non-stationary generator produces even more drought extremes than the stationary non-synthetic traces.

Generated streamflow traces in comparison with the FDC of the historical record.

B.6.2.4. Placing CMIP5 Projections in the Context of Non-Stationary Flows#

We have broadened the drought conditions that we are creating which that can be very useful to understand how our water systems model performs under potentially extreme scenarios. However, it’s useful to compare our bottom-up synthetically generated flows in the context of global physically-driven CMIP5 projections to get a better understanding of how the two approaches compare. We first aquire 97 CMIP5 projections from the Colorado River Water Availability Study (CWCB, 2012). In each of these projections, monthly precipitation factor changes and temperature delta changes were computed between mean projected 2035–2065 climate statistics and mean historical climate statistics from 1950–2013. These 97 different combinations of 12 monthly precipitation multipliers and 12 monthly temperature delta shifts were applied to historical precipitation and temperature time series from 1950–2013. The resulting climate time series were run through a Variable Infiltration Capacity (VIC) model of the UCRB, resulting in 97 time series of projected future streamflows at the Colorado‐Utah state line.

We fit an HMM to each trace of projected streamflow and get a set of corresponding HMM parameters. Then we take the ratio between these parameters and the baseline HMM parameters that we calculated earlier in the notebook in order to calculate the multipliers associated with each CMIP5 projection. This is all done externally, so we import the resulting multipliers in the next line.

# Read in CMIP5 and paleo multipliers
CMIP5_multipliers = pd.read_csv('data/CMIP5_SOWs.txt', header=None, sep=" ")

Let’s plot a response surface that will allow us to see how combinations of HMM parameters tend to influence decadal drought. In order to get a continuous surface, we’ll fit a non-linear regression to the parameter values and then predict the decadal drought over a set of grid points. We fit the response surface for two parameters that should have an affect on decadal drought: the dry distribution mean and the dry-dry transition probabilites.

# Choose two parameters to fit the response surface for
mu_dry=[i[1] for i in LHsamples]
tp_dry=[i[4] for i in LHsamples]

# Create an interpolation grid
xgrid = np.arange(np.min(mu_dry),
                  np.max(mu_dry),
                  (np.max(mu_dry) - np.min(mu_dry)) / 100)

ygrid = np.arange(np.min(tp_dry),
                  np.max(tp_dry),
                  (np.max(tp_dry) - np.min(tp_dry)) / 100)

# Fit regression
d = {'Dry_Tp': tp_dry,
     'Dry_Mu': mu_dry,
     'Drought_Occurrence':decadal_drought_occurence}

df = pd.DataFrame(d)
df['Intercept'] = np.ones(np.shape(df)[0])
df['Interaction'] = df['Dry_Tp'] * df['Dry_Mu']
cols = ['Intercept'] + ['Dry_Mu'] + ['Dry_Tp'] + ['Interaction']
ols = sm.OLS(df['Drought_Occurrence'], df[cols])
result = ols.fit()

# Calculate drought occurence for each grid point
X, Y = np.meshgrid(xgrid, ygrid)
x = X.flatten()
y = Y.flatten()
grid = np.column_stack([np.ones(len(x)), x, y, x * y])
z = result.predict(grid)
z[z < 0.0] = 0.0 # replace negative shortage predictions with 0

Let’s plot our results:

# Set color gradient for response surface
drought_map = mpl.cm.get_cmap('RdBu_r')

# Reshape our predicted drought occurrence and define bounds of colors
Z = np.reshape(z, np.shape(X))
vmin = np.min([np.min(z), np.min(df['Drought_Occurrence'].values)])
vmax = 15
norm = mpl.colors.Normalize(vmin, vmax)

# Plot response surface and CMIP5 projections
fig, ax = plt.subplots(figsize=(12, 8))
ax.contourf(X, Y, Z, cmap=drought_map, norm=norm)
ax.scatter(CMIP5_multipliers.iloc[:,7],
           CMIP5_multipliers.iloc[:,12],
           c='#ffffb3',
           edgecolor='none',
           s=30)
cbar = ax.figure.colorbar(mpl.cm.ScalarMappable(norm=norm, cmap=drought_map), ax=ax)
ax.set_xlim(np.nanmin(X), np.nanmax(X))
ax.set_ylim(np.nanmin(Y), np.nanmax(Y))
ax.set_xlabel('Dry State Mu', fontsize=14)
ax.set_ylabel('Dry-Dry Transition Probability', fontsize=14)
ax.tick_params(axis='both', labelsize=14)
cbar.ax.set_ylabel('Decadal Drought Occurrence', rotation=-90, fontsize=14, labelpad=15)
cbar.ax.tick_params(axis='y',labelsize=14)
plt.show()
plt.close()
_images/hmm_53_0.png

We see the influence of the dry state mean and dry-dry transition parameters. We’re likely to see more decadal droughts when we (1) increase the dry-dry transition probability, which inherently will increase persistence of the dry state, and (2) when we make the dry state log mean drier. Note that the CMIP5 scenarios tend to span the extent of the dry mean sample space, but are less representative of the dry transition probability sample space, which suggests that the types of hydrological droughts represented in the projections tend to only be wetter to slightly drier than our baseline. Both methods of producing these scenarios are valid, though studies have suggested that globally-resolved GCMs may be inappropriate to represent regional extremes. Ultimately, if your goal is to produce a variety of ensembles that are characterized by many different drought characteristics, you will likely find that a generator approach will serve this purpose better.

B.6.2.5. Tips to Create an HMM-Based Generator for your System#

In this tutorial, we demonstrated how to fit an HMM-based generator for a single gauge located in the Upper Colorado River Basin. In order to apply this methodology to your problem, you will need to first ask:

  1. Is this model appropriate for my location of interest? We have applied this style of generator to locations where persistent wet and dry states are characteristic, which tends to be in the Western US. Ultimately the best way to judge if an HMM is useful for your application is to fit the model and explore the resulting distributions. Are there two (or more) distinct states that emerge? If not, then your location may not exhibit the type of persistence that an HMM-based generator is useful for. You can consider exploring other styles of generators such as the Kirsch-Nowak generator (Kirsch et al., 2013).

  2. Do I have the right datasets? We use annual data for our location of interest. In this notebook, the HMM is fit to log annual flows. Ultimately, it can be disaggregated to daily flows (using a reference historical daily dataset) to be useful in water resources operational applications. You could also disaggregate to a finer resolution than daily if the historical dataset exists.

If you meet these requirements, feel free to proceed through fitting the model using the code available in the notebook. Be sure to consider the appropirate number of samples to generate (both in a stationary and non-stationary case). Make sure that you test multiple sample sizes and continue to increase your sample size until you converge to a consistent representation of extremes. What is the appropriate number of LHS samples of the parameters to use? In this experiment we used 1,000 samples of parameters due to extensive stability tests described in Quinn et al. (2020).

Finally, to learn more about this test case refer to Hadmichael et al. (2020a) and Hadmichael et al. (2020b). For another study on synthetic drought generation to support vulnerability assessments in the Research Triangle region of North Carolina, please refer to Herman et al. (2016)

B.6.2.6. References#

Ault, T. R., Cole, J. E., Overpeck, J. T., Pederson, G. T., & Meko, D. M. (2014). Assessing the risk of persistent drought using climate model simulations and paleoclimate data. Journal of Climate, 27(20), 7529-7549.

CWCB (2012).Colorado River Water Availability Study Phase I Report. Colorado Water Conservation Board

Hadjimichael, A., Quinn, J., Wilson, E., Reed, P., Basdekas, L., Yates, D., & Garrison, M. (2020a). Defining robustness, vulnerabilities, and consequential scenarios for diverse stakeholder interests in institutionally complex river basins. Earth’s Future, 8(7), e2020EF001503.

Hadjimichael, A., Quinn, J., & Reed, P. (2020). Advancing diagnostic model evaluation to better understand water shortage mechanisms in institutionally complex river basins. Water Resources Research, 56(10), e2020WR028079.

Herman, J. D., Zeff, H. B., Lamontagne, J. R., Reed, P. M., & Characklis, G. W. (2016). Synthetic drought scenario generation to support bottom-up water supply vulnerability assessments. Journal of Water Resources Planning and Management, (11), 04016050.

Kirsch, B. R., Characklis, G. W., & Zeff, H. B. (2013). Evaluating the impact of alternative hydro-climate scenarios on transfer agreements: Practical improvement for generating synthetic streamflows. Journal of Water Resources Planning and Management, 139(4), 396-406.

Overpeck, J.T. & Udall, B. (2020) “Climate change and the aridification of North America.” Proceedings of the national academy of sciences 117.22 11856-11858.

Quinn, J. D., Hadjimichael, A., Reed,P. M., & Steinschneider, S. (2020). Canexploratory modeling of water scarcity vulnerabilities and robustness bescenario neutral?Earth’s Future,8,e2020EF001650. https://doi.org/10.1029/2020EF001650Received

Williams, A. P., Cook, B. I., & Smerdon, J. E. (2022). Rapid intensification of the emerging southwestern North American megadrought in 2020–2021. Nature Climate Change, 12(3), 232-234.
